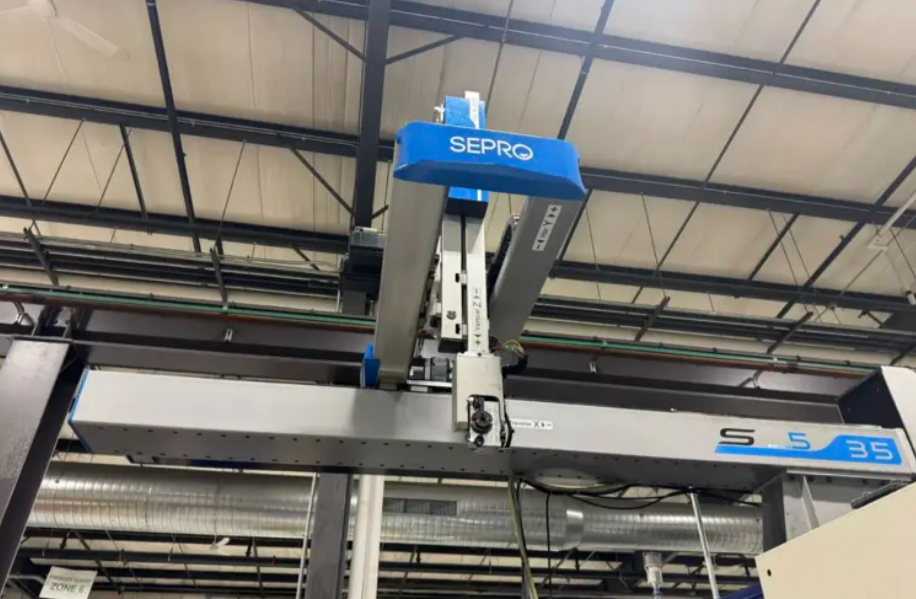

Sepro S5-35 Servo Robot

Voltage 460 va
Controller 2
Sepro Servo Robot – Model S5-35 (SR S5-35 S3)
Horizontal Movement of Carriage on Beam X
Stroke: 2500 mm
Motorization: Servo-controlled brushless
Instantaneous linear speed: 3.50 m/s
Stop control: PTP linear numerical
Display resolution: 0.1 mm
Positioning precision DLx: ±0.5 mm
Placing repeatability rx: ±0.1 mm
Unloading side: See layout drawing (file B)
Spacer between robot and platen: Fixed under beam
Horizontal Demoulding Movement Y
Stroke: 900 mm
Motorization: Servo-controlled brushless
Instantaneous linear speed: 3.00 m/s
Stop control: PTP linear numerical
Display resolution: 0.1 mm
Positioning precision DLy: ±0.5 mm
Placing repeatability ry: ±0.1 mm
Vertical Movement Z
Stroke: 1800 mm
Motorization: Servo-controlled brushless
Instantaneous linear speed: 4.00 m/s
Stop control: PTP linear numerical
Display resolution: 0.1 mm
Positioning precision DLz: ±0.5 mm
Placing repeatability rz: ±0.1 mm
