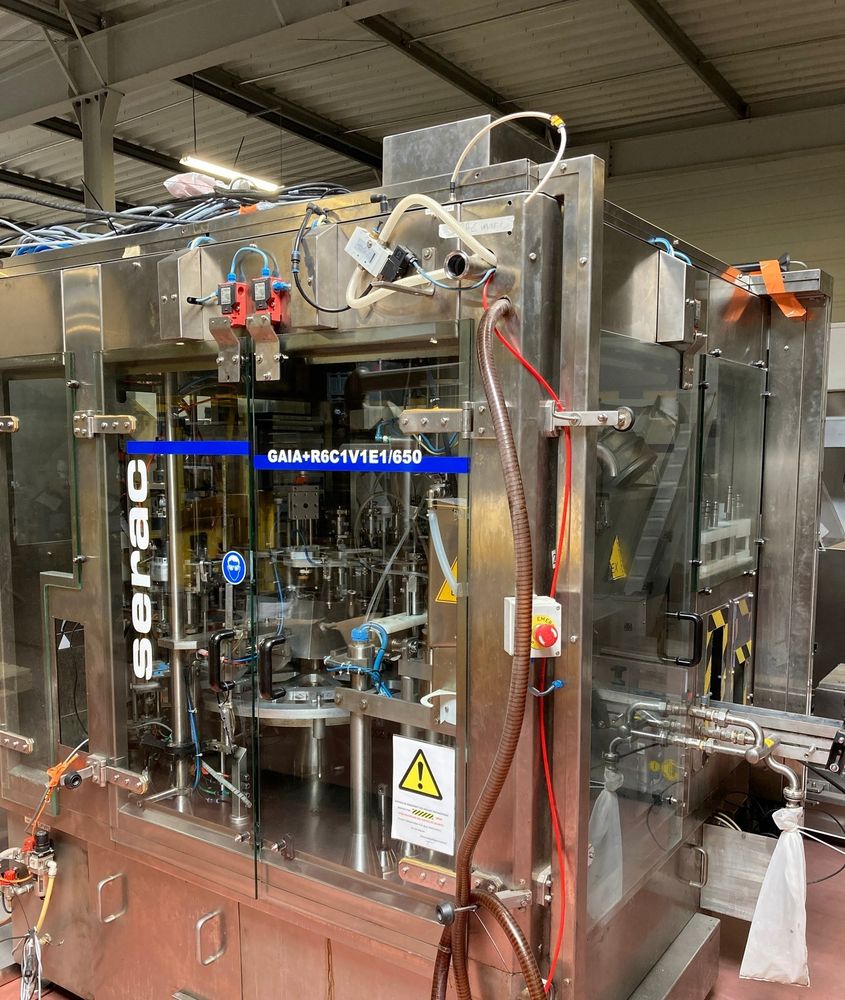

Serac Gaia R6C1V1E1/650

Type of filling : volumetric system, pumps
Number of pumps :
Capacity: 6
Current mount: 5 + 6° modified station for filling recovery

Detail of current operation :
Filling
Deposit pump
Pump crimping
Deposit fret
Fritte sinking

A screw-in site is also present. But current assembly = sealing control station
Min / max rate : 1200 to 3600 CPM
Siemens Simatic S7-300 Automate
Keyence Camera Final Control System
Height container min / max : 50 mm / 250 mm
Overall dimensions of the machine (W x d x h): 4100 x 1800 x 2350 mm
Electrical cabinet dimensions (W x d x h): 1260 x 1250 x 2600 mm (weight 400 kg)
Weight : 3000 kg
Giraffe pumps

Manufacturer: PKB
Model STO
Year 2010
Overall dimensions (w x d x h) : 1700 x 630 x 2100 mm
Height under spout : 1500 mm
Cleats : width strip 220 / height 145

Vibrating bowl pumps
Manufacturer : PKB
Model : BOWL
Year : 2010
Overall dimensions (D x W x h) : Ø 820 x 1600 x 1400
Weight : 250 Kg

Giraffe frets

Manufacturer : PKB
Overall dimensions (W x d x H) : 1700 x 700 x 2200 mm
Bandwidth : 220 mm
Height cleats : 145 mm
Height under spout : 1250 mm
Engine : Lenze

Vibrating bowl frets

Manufacturer : ADV
Model : CY 750 POM / 10 D
Year : 2008
Overall dimensions (D x W x h) : Ø 1650 x 2050 x 1600
Weight : 300 kg
Chain width : 84 mm

3 chain conveyors
Bottle buckets 25 ml, 30 ml, 50 ml, 75 ml, 90 ml, 100 ml
Number of buckets per volume :
