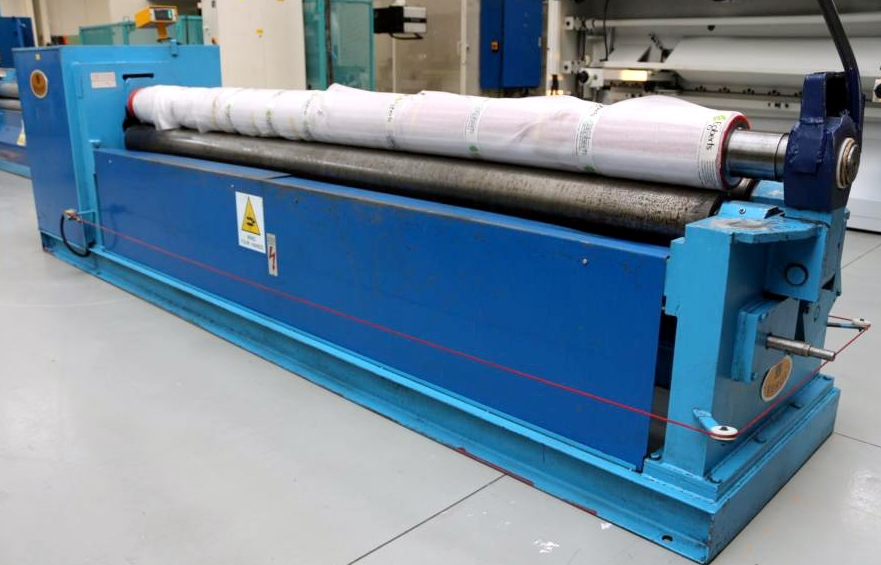

Sergi EXPORT 3050 x 3.0

Machine type: Plate Bending Machine - 3 Rolls
Control: Conventional
Sheet width: 3050 mm
Plate thickness: 3.0 mm (ST)
Pre-bending capacity: 3.0 mm (ST)
Upper roll diameter: 170 mm
Lower roll diameter: 170 mm
Side roll diameter: 180 mm
Voltage: 380 V
Total power requirement: 3.0 kW
Weight: 4250 kg

Features and Equipment

Electro-hydraulic 3-roll bending machine
Asymmetrical roll arrangement
Electro-motor-driven side roll adjustment
Digital position display
Manual bottom roll adjustment via hand crank
Conical bending device
Inclined bottom and side rolls
Parallel alignment in any side roll position
Hardened rolls SAE 1050 CK 45
Manual folding storage for removing closed pipes
Top roll must be raised before opening storage
Safety device
Connection cable and connector
4-way foot switch
2 buttons for side roll movement (up/down)
2 buttons for roll movement (left/right)
4 new foot switch covers
Operating instructions (English)
Brand new top roller with plastic/rubber coating
Suitable for bending non-ferrous metals
Suitable for copper and aluminum
