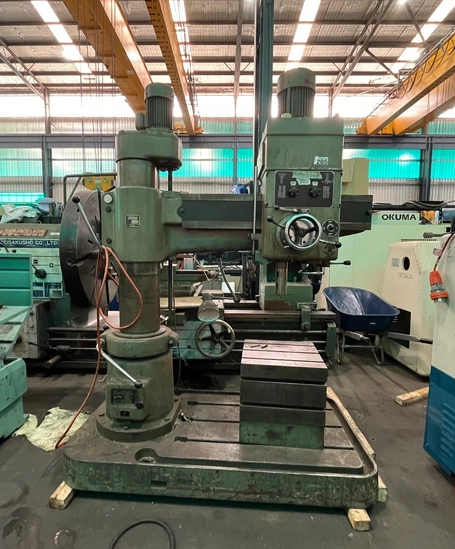

Servian 602 2,500 RPM

Arm Length: 1,200 mm
Maximum Drilling Diameter: 25 mm
Spindle to Column Distance Minimum: 300 mm
Spindle to Column Distance Maximum: 1,000 mm
Spindle Nose to Base Minimum: 250 mm
Spindle Nose to Base Maximum: 1,030 mm
Radial Arm Vertical Travel: 500 mm
Head Travel Along Arm: 700 mm
Column Diameter: 240 mm
Spindle Diameter: 65 mm
Spindle Travel (Quill): 280 mm
Spindle Taper: MT3
Spindle Speed Range: 32–2,500 RPM
Number of Spindle Speeds: 16
Feed Range: 0.10–0.25 mm/rev
Number of Feed Steps: 8
Box Table Size: 600 x 450 mm
Main Motor Power: 1.5 kW
Arm Elevation Motor Power: 0.75 kW
Overall Dimensions: 1,760 x 800 x 2,050 mm
Net Weight: Approx. 1,600 kg
