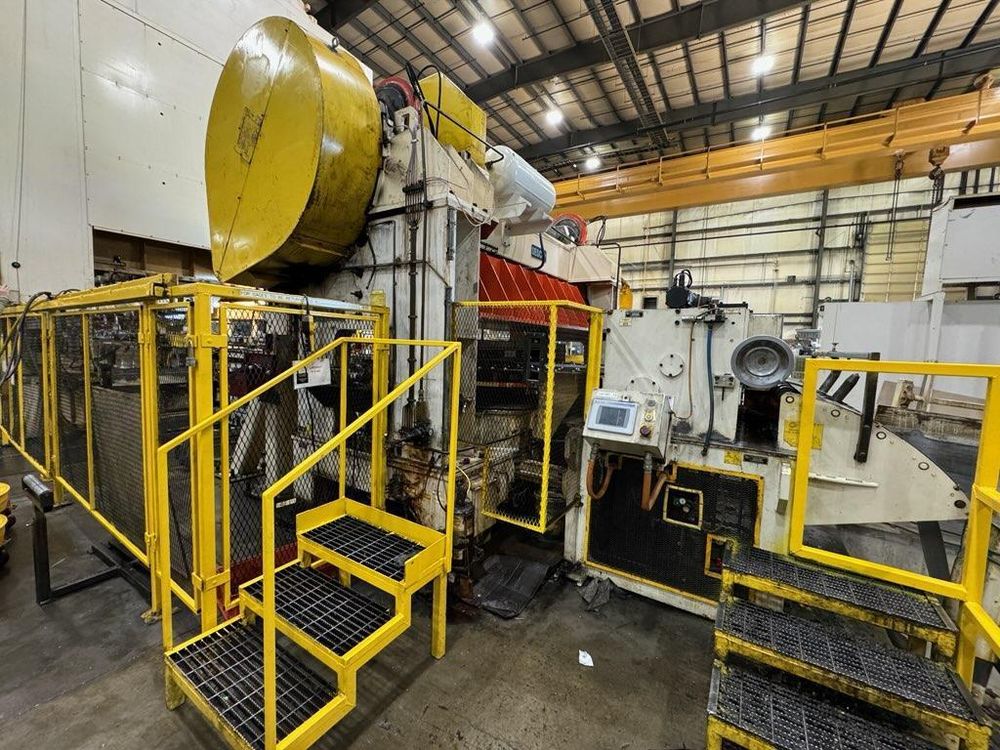

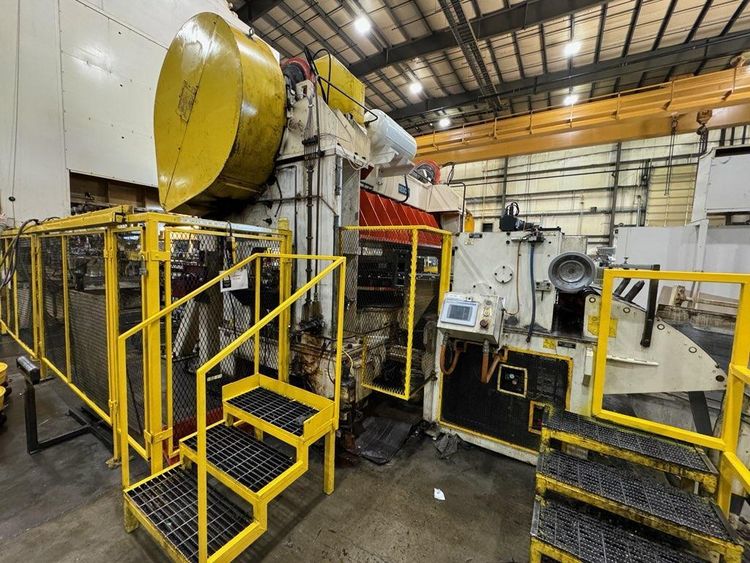

Sesco Coil Feed Line 60,000 lb

SESCO Coil Feed Line

Coil weight capacity 60,000 lb
Stock width capacity 72"
Maximum stock thickness at full width 0.125"
Minimum expansion range 22"
Maximum expansion range 26"
Coil outside diameter capacity 72"
Traveling coil reel with traveling coil load car
Traversing coil reel base
Three-leaf mandrel with coil keeper arms
Hydraulic mandrel expansion
Air brake on main spindle
Adjustable tensioning
Threading drive for jog forward and reverse
Traversing coil load car with power lift and travel
Narrow coil supports
Coil storage rack
Stand-alone peeler, threader, hold down arm station
Hydraulic hold down arm raise/lower
Motorized end wheel on hold down arm
Hydraulic peeler table raise/lower
Hydraulic peeler table spade extension
Powered coil straightener
Entry and exit pinch rolls 6" diameter
Air-operated upper pinch roll adjustment
Seven powered straightener rolls 3" diameter
Bank-type upper straightener roll adjustment via screw jacks
Adjustable stock width edge guides
Upper and lower straightener roll backups with dual flights
Exit cascade loop support rollers
Variable speed drive
Operator control station
Automatic run cycle
Dual exit threading table with bomb bay door design
Servo roll feed with air-operated upper roll adjustment
Pilot release with solenoid control
Entry cascade material support section
Self-centering dual roll edge guides
Air pressure regulator
Cabinet base mounted with adjustable pass line height
