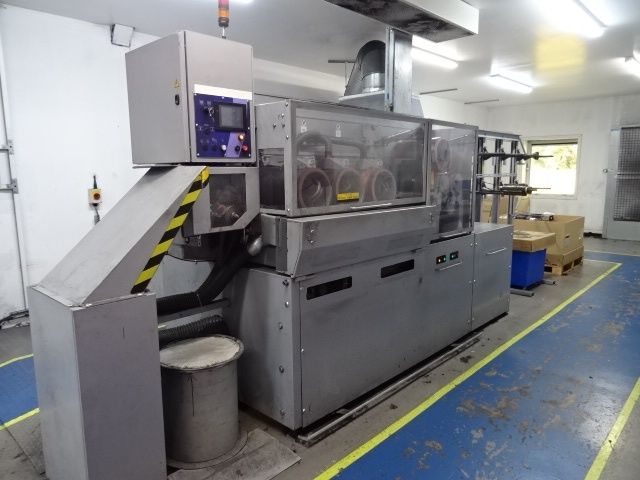

Nsc schlumberger, Seydel FB20 Converter
EUROPE (Western and Northern)

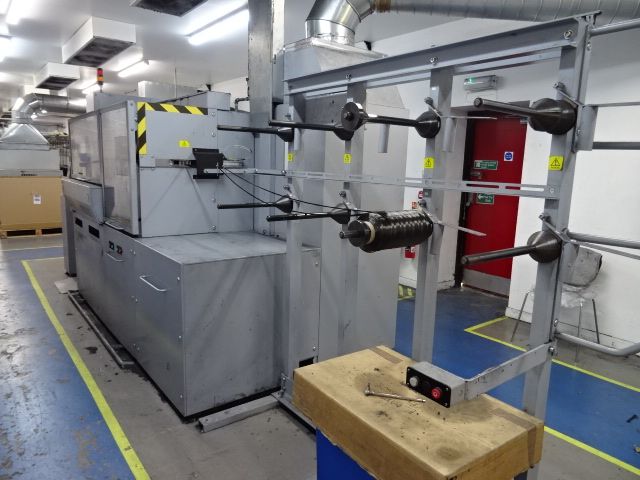

8 end creel for continuous filament tow packages with tension control.
(300mm tubes ID74mm 260mm traverse 200mm diameter)
The FB20 model is used in a short in-line breaking process consisting of one pre-stretching block followed by three breaking heads.
(N Schlumberger developed the FB20 stretch breaker especially designed for technical fibres. These fibres can be carbon fibres, glass fibres, metallic fibres, para or meta-aramids fibres, polyethylene (HMPE), polytetrafluoroethylene (PTFE) .All these fibres are used in composites parts thanks to their exceptional technical characteristics (high tenacity, elongation, stiffness etc.)
Pre- stretching – Single Rubber roller dia 280mm x 400mm with a pair of tension cylinders dia.150mm.
Breaking section – 3 off Rubber rollers dia 280mm x 400mm with 3 pairs of breaking cylinders dia.75mm.
Fibre trumpet and dual delivery rollers.
Delivery into can dia. 400mm x 500mm.
Cooling unit
Dust extraction cabinet with dust collecting bag.
