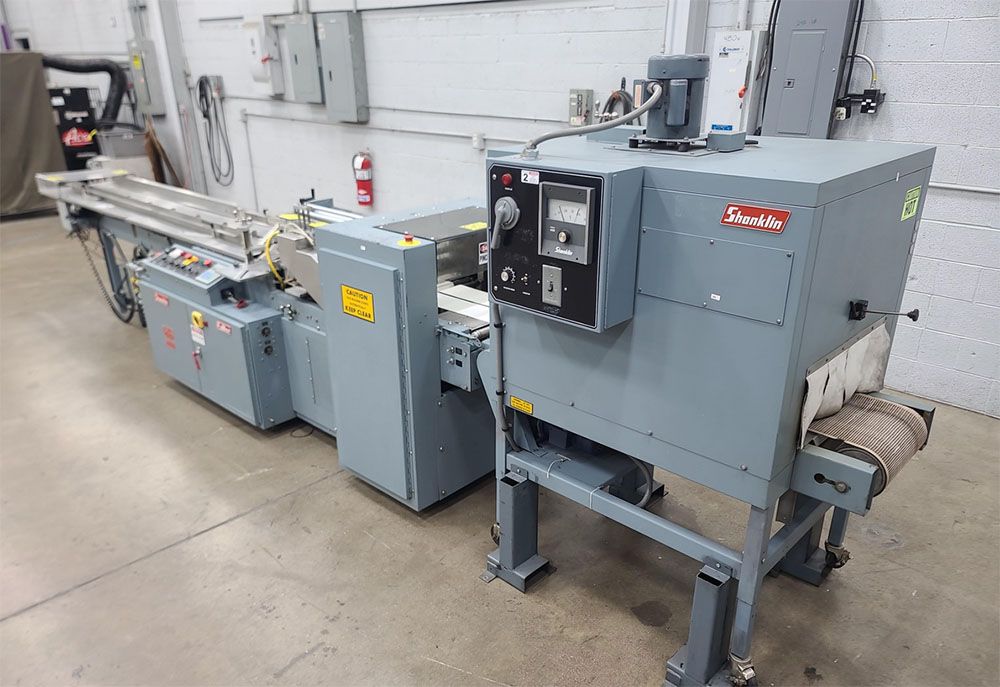

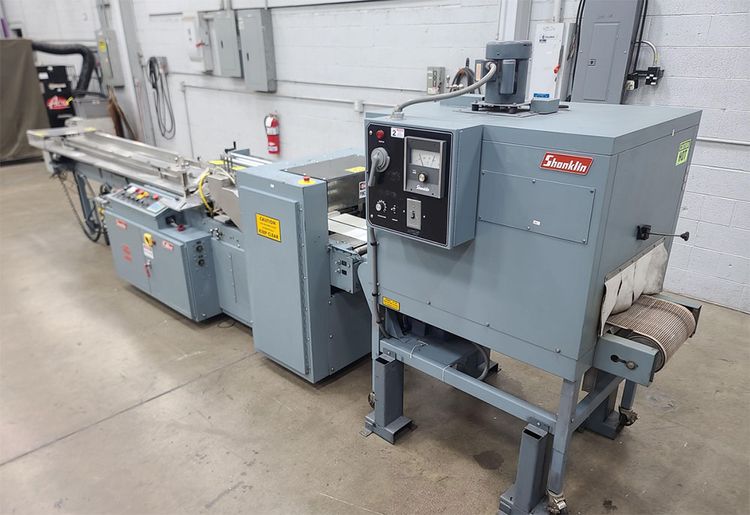

SHANKLIN F-5A 0.5-16 in

Side Sealer Shrink Wrapping System w/ Streamline Infeed and Heat Tunnel
Features:
Flighted lug infeed conveyor with Streamline design for accurate spacing and speeds up to 75 packages per minute
Inverting film heads for flexible film width handling without precise matching, reducing setup time
Hot knife end seal for clean, precise three-sided trim seals on irregular shapes
Variable speed drive and adaptable conveyor settings for seamless integration with heat tunnels
Accepts intermittently delivered products with belt speed control for uninterrupted operation
Durable powder-coated steel construction with options for stainless steel in food-grade environments

Specifications:
System type: Automatic side seal form-fill-seal shrink wrapper with infeed and heat tunnel
Maximum speed: 75 packages per minute; 90 linear ft/min
Package size range: Length 3-48 in, width 0.5-16 in, height 0.125-6 in
Maximum film width: 22 in folded or 44 in flat
Infeed type: Flighted lug conveyor with 9 in centers
Seal type: Hot knife end seal
Drive motor: 3/4 HP DC variable speed
Power requirements: 230 V / 1 Ph / 20 A
Controls: Touch-screen programmable interface
Construction: Powder-coated steel (stainless steel optional for DA models)
Compatible films: Polyolefin shrink film
