Shar 62" Centerwind Inspection And Rewind Machine

Ref : 2493564-2-CP
Condition : Used
Manufacturer : Shar
Width : 62"
Type : Centerwind Inspection And Rewind Machine
Year(s) : 1990
Quantity : 1
Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)
Last check : 12 Apr. 2023

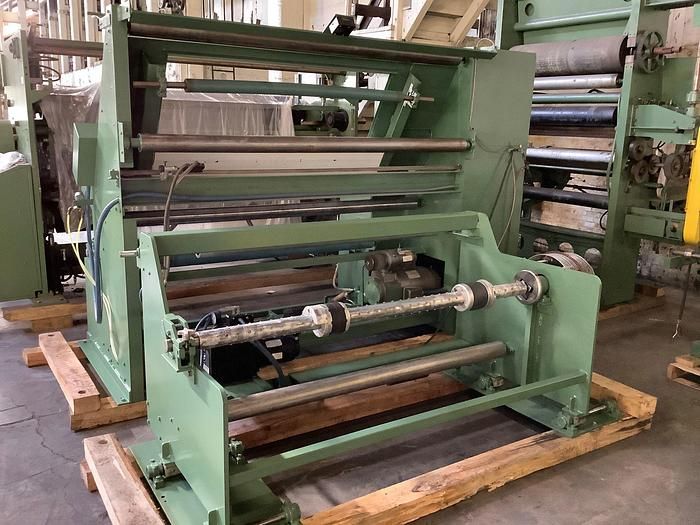

62” Shar center rewind rereeler and inspection machine.
This machine was unwinding & rewinding rolls of metalized films.
Unwind will accept 34” diameter rolls. Rewind will rewind 40” diameter rolls.
Age approximately 1990. 1500 feet per minute.
Variable speed. Cleveland controls. DC drive, 230 volt, 3 phase, 60 cycle.
20 HP Baldor DC drive motor. Durant counter with preset. 67” wide idlers, 5” diameter.
If bypass inspection system, 65” wide product can be rewound.
Detached unwind. 3” air shaft with 6” & 12” chucks. 8” Montalvo air brake.
Fife pneumatic sensor. Automatic edge guiding; moves unwind left / right, +/- 3”.
First idler moves with unwind. After unwind, goes into inspection system, light system.
3” diameter bowed roll before inspection light.
5” diameter rubber spreader roll after inspection system, before rewind.
Center rewind. 5” diameter, 67” wide rubber-covered layon roll,
which is air-loaded down against the rewinding roll.
Can control the amount of pressure down on rewinding roll to help
with tightly rewound rolls. 3” air rewind shaft.
