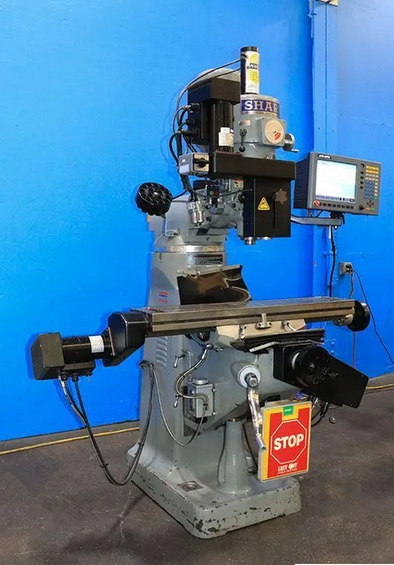

Sharp LVM Vertical 4200 RPM

SHARP LVM
2004

Vertical Mill
3-Axis CNC plus manual handwheels
ACU-RITE Millpower control, model G2
Retrofitted 2017
Table size 9" x 42"
Table travel (X-axis) 25"
Saddle travel (Y-axis) 11"
Quill travel (Z-axis) 5"
Knee travel 16"
Ram travel 12"
Spindle taper R-8
Spindle speed range 60 - 4200 RPM
Head tilt angle (left/right) 45°
Head tilt angle (up/down) 45°
Floor area (doors closed) 101" x 74"
Height 87"
Weight with control 3,600 lbs
X, Y & Z ballscrews
AC servo motors
Conversational and G-code use
USB port & RS-232 interface
Glass scale feedback
Hardened & ground ways
Hardened & ground table
Air actuated power draw bar
One shot lubrication system
3 HP spindle motor
