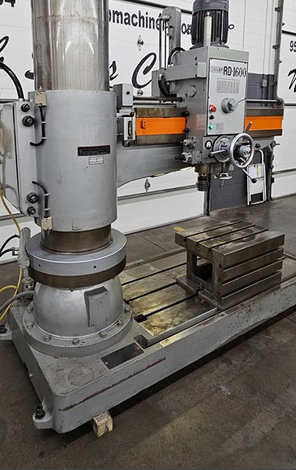

Sharp RD-1600 1920 RPM

Sharp RD-1600
Year: 2013

Column diameter: 17"
Spindle taper: MT #5
Main motor: 7.5 HP
Spindle speed range: 40–1920 RPM
Spindle speed steps: 12
Spindle feed range: 0.003–0.038"
Spindle feed steps: 6
Spindle stroke: 14.56"
Max distance from column surface to spindle center: 63"
Min distance from column surface to spindle center: 13.37"
Spindle head travel: 49.62"
Max distance from base to spindle end: 63"
Min distance from base to spindle end: 13"
Arm elevating height: 35.43"
Box table size: 27.62" x 19.62" x 15.75"
Base dimensions: 97.62" x 41.34" x 8.25"
Max machine height: 10.40'
Floor space (L x W x H): 8.5' x 3.75' x 8.75'
Shipping dimensions (L x W x H): 9.16' x 4.75' x 9.58'
Approx. shipping weight: 10,340 lbs
Drilling capacity in cast iron: 2.62"
Drilling capacity in steel: 2.25"
Tapping capacity in cast iron: 2.37"
Tapping capacity in steel: 2"
Boring capacity in cast iron: 7.37"
Boring capacity in steel: 5"
Total power consumption: 12 KVA / 17.5 amps @ 440V
Elevating motor: 2 HP
Clamping motor for column and gearbox: 1 HP
Clamping motor for arm: 1.5 HP
Coolant pump: 1.12 HP

Hardened and ground arm slideways
Hardened and ground gears
Double tube column design
Electric motor arm elevation
Built-in automatic tool ejector
Safety device for arm drop prevention
T-slots on box table
Drain channels on box table
Coolant system
Auto spindle reverse for tapping
Work light
Toolbox
