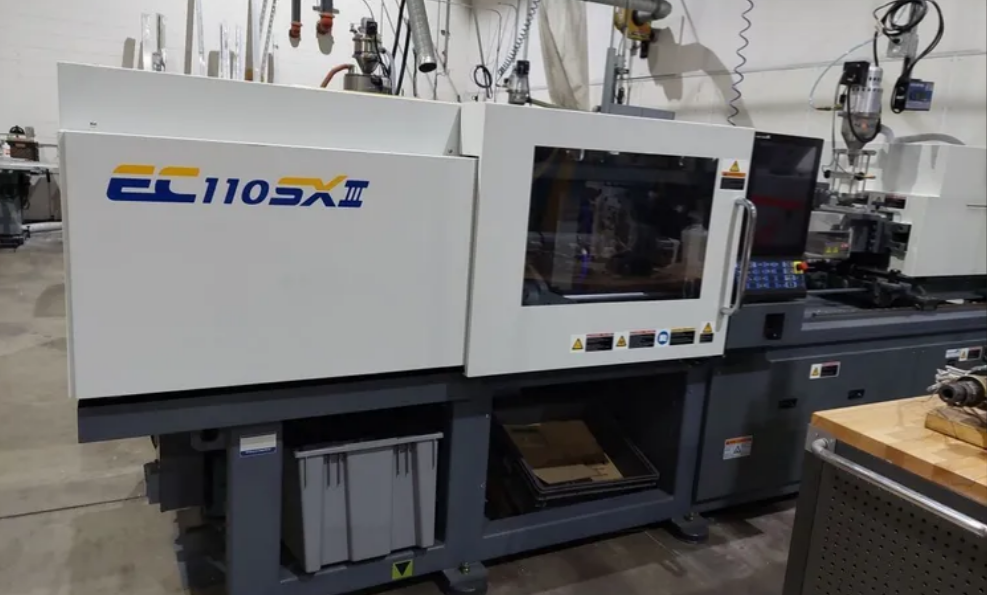

Shibaura EC110SXIIIV70-U34-2Y 110 T

Type All Electric
Clamping Force Tonnage 110 T
Barrel Code 2Y
Shot Volume (PS) 2.5 oz
Shot Volume (PE) 2 oz
Screw Diameter 1.1"
Maximum Injection Pressure 41600 psi
Maximum Holding Pressure 41600 psi
Screw Speed STD 400 rpm
Injection Rate STD in/s
Screw Torque STD lbf・ft
Plasticizing Capacity (PS) STD 0.4 oz
Nozzle Touch Force 2 T
Tie Bar Distance H 18.1"
Tie Bar Distance V 16.1"
Platen Dimension H 26"
Platen Dimension V 24"
Clamp Stroke 13.8"
Maximum Daylight 35.4"
Mold Height Min 7.1"
Mold Height Max 21.7"
Ejector Force 3.3 T
Ejector Stroke 3.54"
Power supply Volts 230
Main Breaker Electric Capacity 53 kva
Heater Capacity 6.8 kw
Injection Orientation Horz
Hours 537 hr.
Machine under power Under Power no Mould in Machine
Control CNC (INJECTVISOR V 70)
Dimensions 16.1 x 4.2 x 5.4
Weight 9400 lbs

Equipped With
injection Molding Machine Configuration
1. Hydraulic Core Pull – Dual Program with Electrical Interface
2. Dual Air Blow
3. Pneumatic Core Pull – Single, Timer Only
4. SPI Robot Interface Receptacle (50-pin / Euromap 67)
5. Programmable Output Signals – 6 Total
6. MachiNetCloud IIoT Connection – Capable
7. Certified Machine Model: EC110SXIIIV70-U34-4B (8.11 oz shot size)
8. Transformer – Not Required
9. Pneumatic Mold Valve Gate (1 Zone)
10. Vibration Mounting Pads
11. 3-Piece Free Flow Screw Tip (in lieu of standard)
12. Screw Anti-Wear Single Flight Design & Tungsten Carbide Barrel
(in lieu of standard)
13. Screw & Barrel Conversion Kit – From 4B to 2Y
14. Intrusion Circuit
