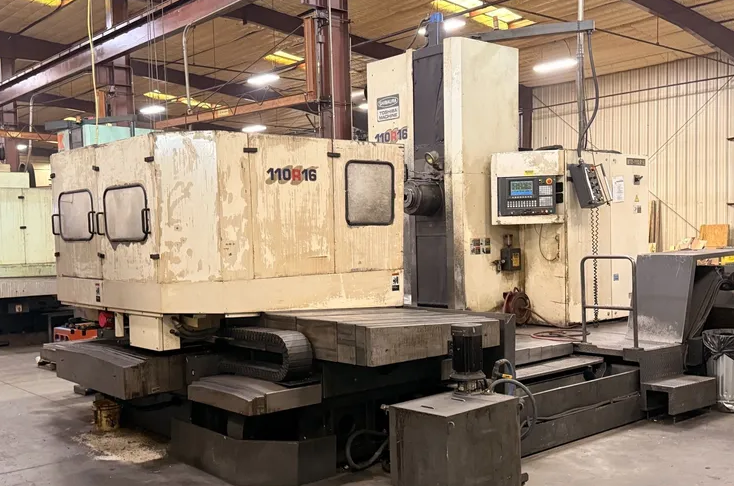

Shibaura, Toshiba BTD-110.R16 Spindle Size 4.3" 3,000 RPM

X-Axis Travel (Cross Movement of Table) 78.7"
Y-Axis Travel (Vertical Travel of Spindle) 59.1"
Z-Axis Travel (Longitudinal Travel of Table) 57.1"
W-Axis Travel (Spindle Extension) 19.7"
Table Working Surface 55.1" x 63"
Table Loading Capacity 13,860 lb
B-Axis Table Indexing 0.0001°
Spindle Speed Range 5 – 3,000 RPM
Spindle Taper CAT-50
Power 30 HP
Dimensions 201" x 236" x 156" H
Weight 61,600 lb
Control Toshiba Tosnuc 888 CNC
Full Manual Pendant Control
Chip Conveyor
Table Guards
Built-in B-Axis Rotary Table
Inspect Under Power in Plant
