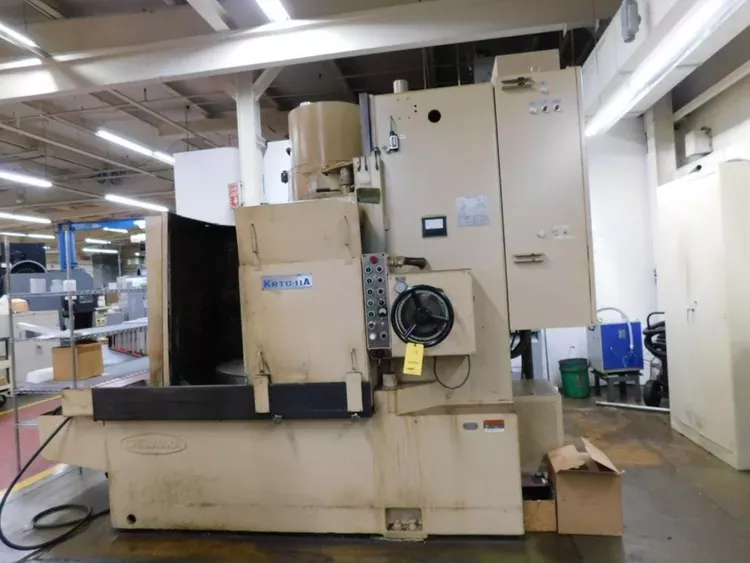

Shibaura, Toshiba KRTC-11A Vertical-Spindle Rotary Surface Grinder

Rotary surface grinder
Magnetic chuck diameter: 42.5 in
Swing between coolant guards: 45 in
Work height under wheel: 23.6 in
Grinding wheel diameter: 22 in
Wheel head feed rate: 0.004–0.12 ipm
Table rotation speed: 6–22 rpm
Spindle motor power: 50 hp
Table rotation motor power: 3/1.5 hp
Table feed motor power: 1 hp
Floor space required: 65 x 125 in
Overall height: 97 in
Machine weight: 15000 lb
42.5 in magnetic chuck with neutrofier
22 in segmented grinding wheel
Ammeter for wheel motor
Automatic lubrication system
Coolant system with separator
Vertical spindle machine design
