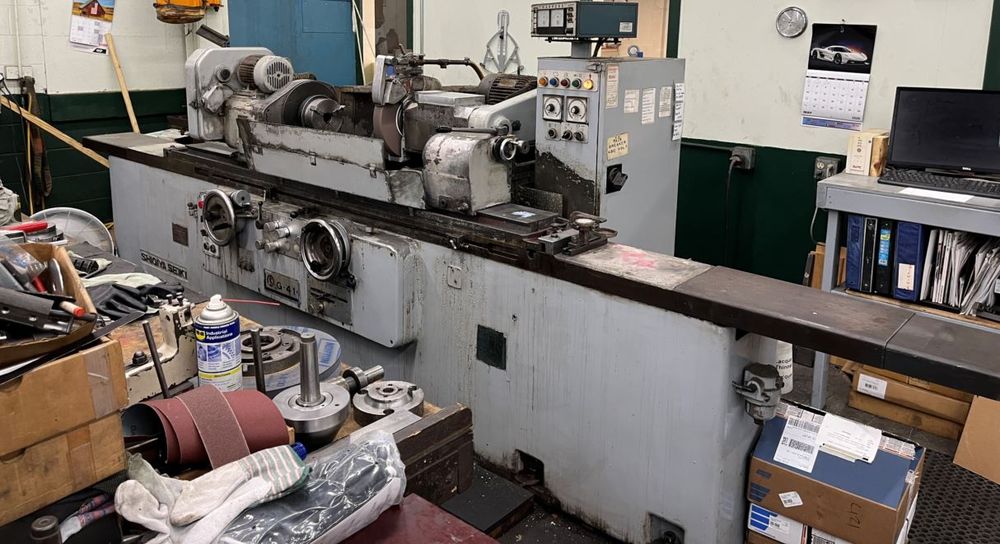

Shigiya GUA-41-150

Swing Over Table: 16.1"
Distance Between Centers: 59"
Maximum Grinding Diameter: 14"
Wheel Head Swivel Angle: ±30°
Grinding Wheel Size: 14" × 1"-2" × 5"
Grinding Wheel Spindle Speed: 1,660 / 1,880 RPM
Manual Feed Stroke: 8.5"
Rapid Traverse: Approx. 1.5"
Handwheel Feed per Revolution: 0.04"
Fine Feed Increment: 0.0001"
Maximum Automatic Infeed Stroke: Approx. 0.03"
Automatic Continuous Infeed Speed: Up to 0.1 IPM
Work Head Swivel Range: 120°
Work Head Spindle Speed: 13 - 252 RPM
Work Head Taper: MT4
Tailstock Taper: MT4
Grinding Wheel Motor: 5 HP
Hydraulic Motor: 1 HP
Work Head Motor: 0.5 HP
Motor-Driven Work Head
6" 3-Jaw Chuck
8" 3-Jaw Chuck
ID Grinding Attachment
Plunge Grinding
Spark-Out Function
Tailstock
2 Back Rests
2 Wheel Mounts
Coolant System
Splash Guard
Machine Weight: 7,800 lbs.
