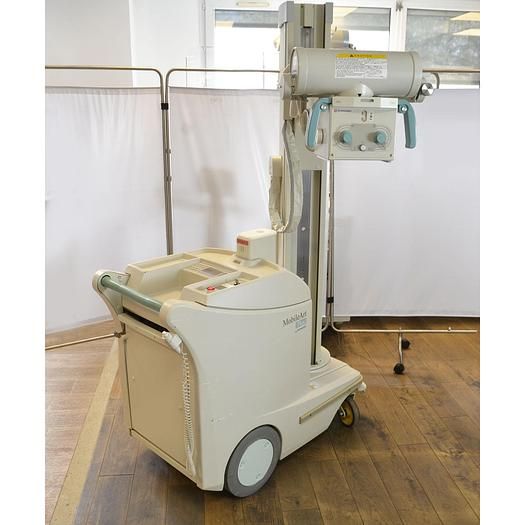

Shimadzu MobileArt Plus

MobileArt Plus is designed to meet the real-world demands of
mobile imaging. Mobile imaging requires consideration of
a variety of issues, including driving in crowded areas,
long journeys with heavy films, capturing high-quality X-ray films
without errors, handling highly sensitive devices, and, most importantly,
patient comfort.

Flexible Bedside Positioning - The X-ray tube arm can be maneuvered
simply and precisely into position in one step by pressing the "All Free"
buttons. In addition, the wide exposure range is
covered thanks to the telescopic arm type.

Imaging in a bright room, energy saving -
The newly installed LED light indicates the irradiation field more
clearly even in a bright room or during the day.
In addition, the long-life LED reduces power consumption and
replacement frequency.

Specifications:
• Easy-to-read X-ray process status panel display
• Compact and lightweight design for easy maneuverability
and good visibility
• Min. X-ray generator mAs, mAs 0.32
• Mobile
• Generator power (kW): 12.5
• X-ray generator KVP range: kV 40-125
• Output frequency: >60kHz
• Voltage: V 110-240
• Max. X-ray generator mAs, mAs 320

Power supply required for battery charging
• Type: Single-phase, AC
• Frequency: 50/60 Hz
• Standard voltage: 100, 110, 120, 200, 220, 230, 240 V
• Voltage variation: 10% compared to standard voltage

Dimensions:
• Height during transport: approximately 1,930 mm (76.0 in)
from the ground
• Height of the X-ray tube focus in radiography
MAX.: approximately 2,010 mm (79.1 in) from the ground
MIN.: approximately 600 mm (23.6 in) from the ground
• Total weight: approximately 370 kg
