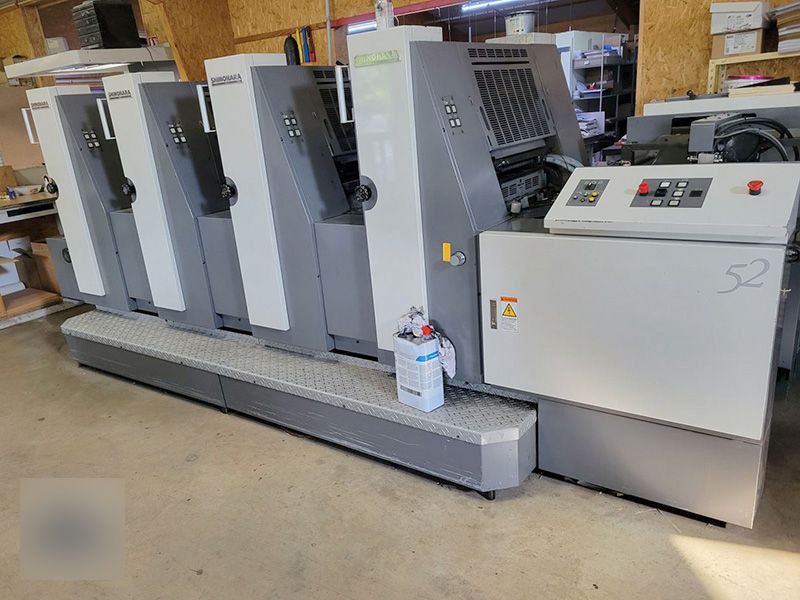

Shinohara 52 IV-P 370x520 mm

4-color offset printing (B3) format, elite class Heavy Duty with perfecting device
Cascade feeder,
vacuum tapes on the feed table,
static remover on the feeder,
side and front stops with micro-adjustment
Shinohara continuous alcohol dampening
Baldwin dampening solution cooling/circulation system
Segmented ink knives , axially offset roll rollers
SPC (Shinohara Press Control) remote control panel : control of circumferential and axial register, zonal ink supply/total ink supply, dampening ductor speed, etc.
Automatic washing system for the ink unit and offset blanket
SPC semi-automatic plate change, perfecting device (4/0, 2/2) , touch control panel
POD on the delivery, anti-set-off device, low-stack delivery
24 million copies printed
Maximum format 370x520 mm
minimum format 100x148 mm
speed 15,000 l/h
material 0.04 – 0.4 mm
dimensions 5'190×1'750×1'652 mm
weight 8,700 kg
