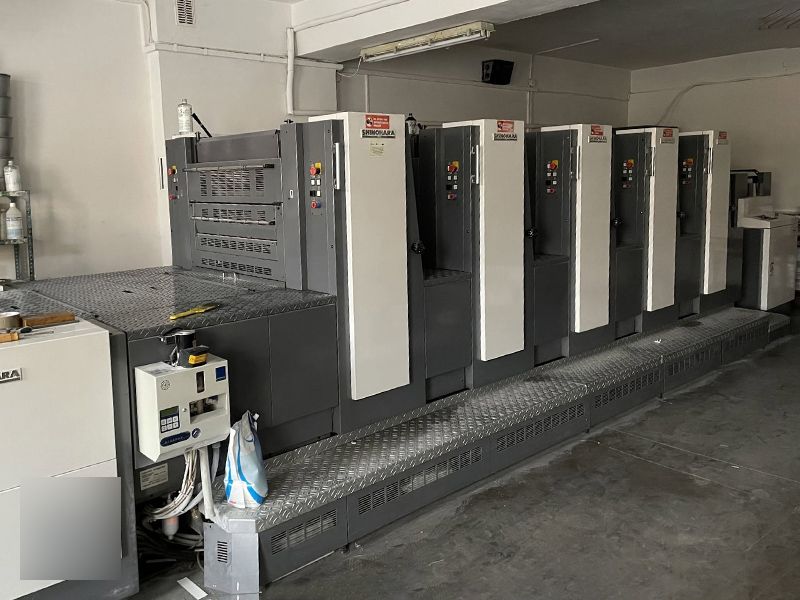

Shinohara 75V 520×750 mm

Equipment:
Cascade feed with vacuum feeder head
Sheet registration table with two types of sensors
Continuous alcohol dampening with Baldwin refrigerator
Automatic alcohol level control with IPA% controller
Inking units with 20 rollers (4 of which are roll-on)
Segmented inking knives (with servo drives)
POD Control Panel with touchscreen
Shinohara Pre-inking System (SPIS) automatic inking unit presetting
Shinohara SPC plate changer
All automatic washup systems (rollers, rubber, and impression cylinders)
No perfecting device (5/0 printing only)
Medium-pile delivery
Baldwin IR dryer integrated into the delivery
Graphix graphite dust
25 million impressions

Description Details :
Maximum sheet format 520×750 mm (20×29”)
Minimum sheet format 200×296 mm
Maximum speed 15,200 l/h
Material thickness 0.04-0.4 mm
Power consumption 32.6 kW
Dimensions 7,248 x 2,585 x 1,939 mm
Net weight 17,755 kg
