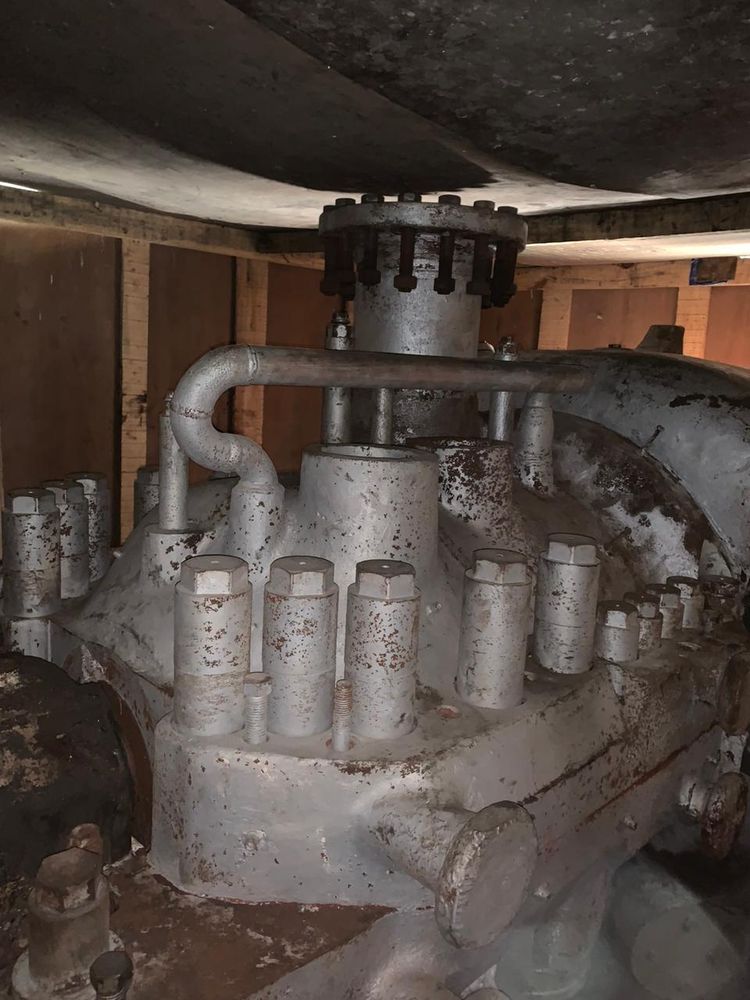

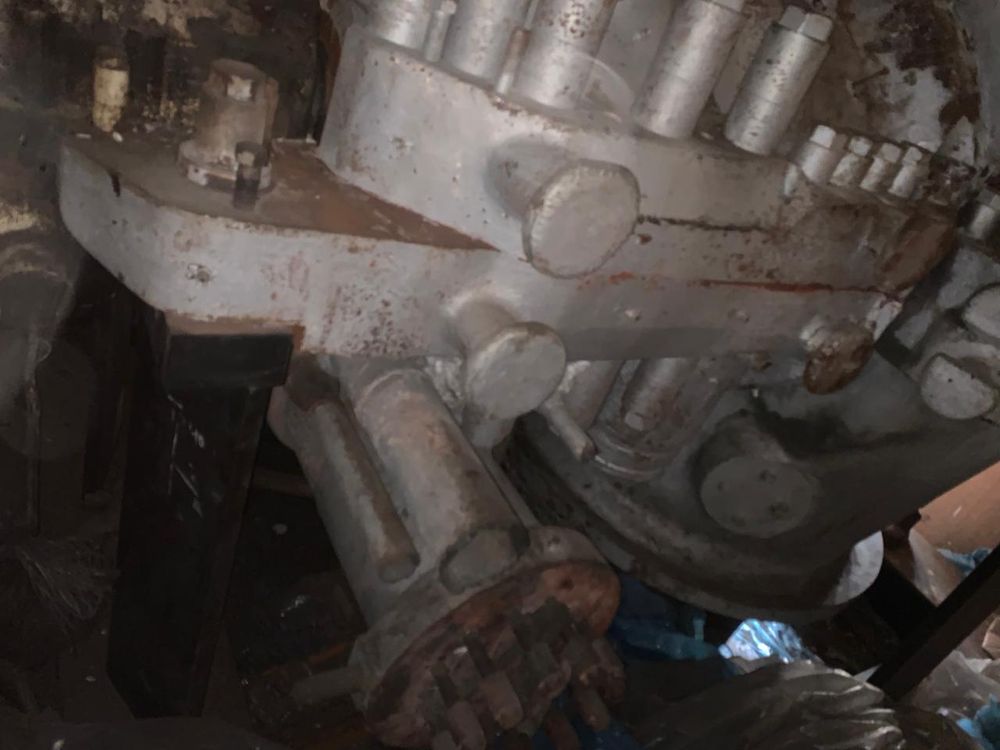

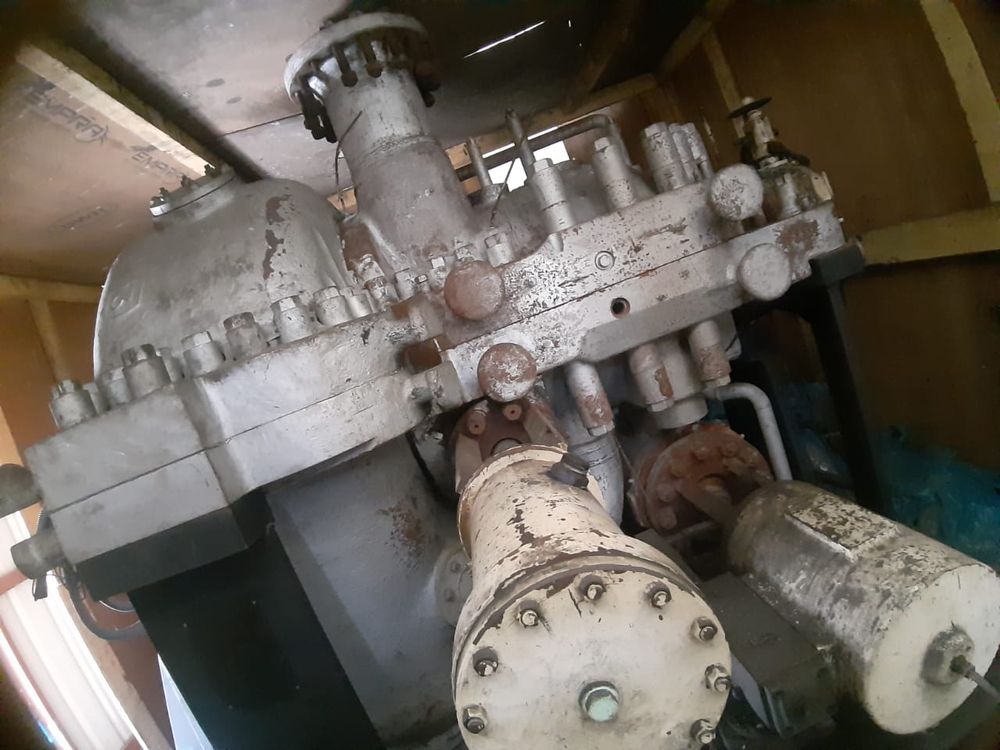

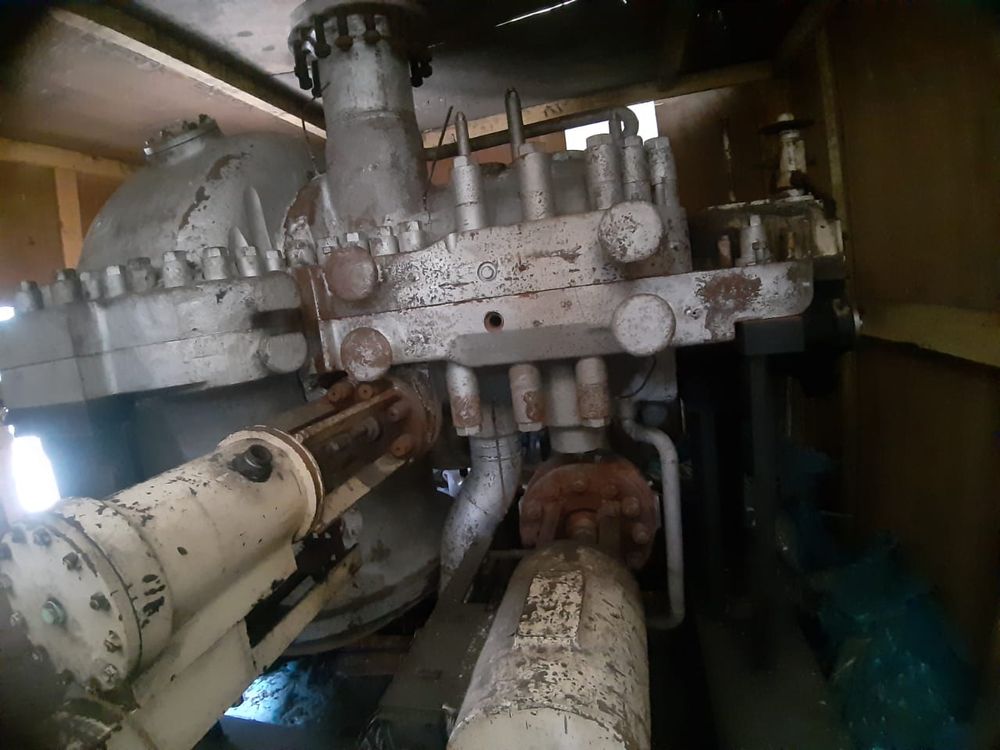

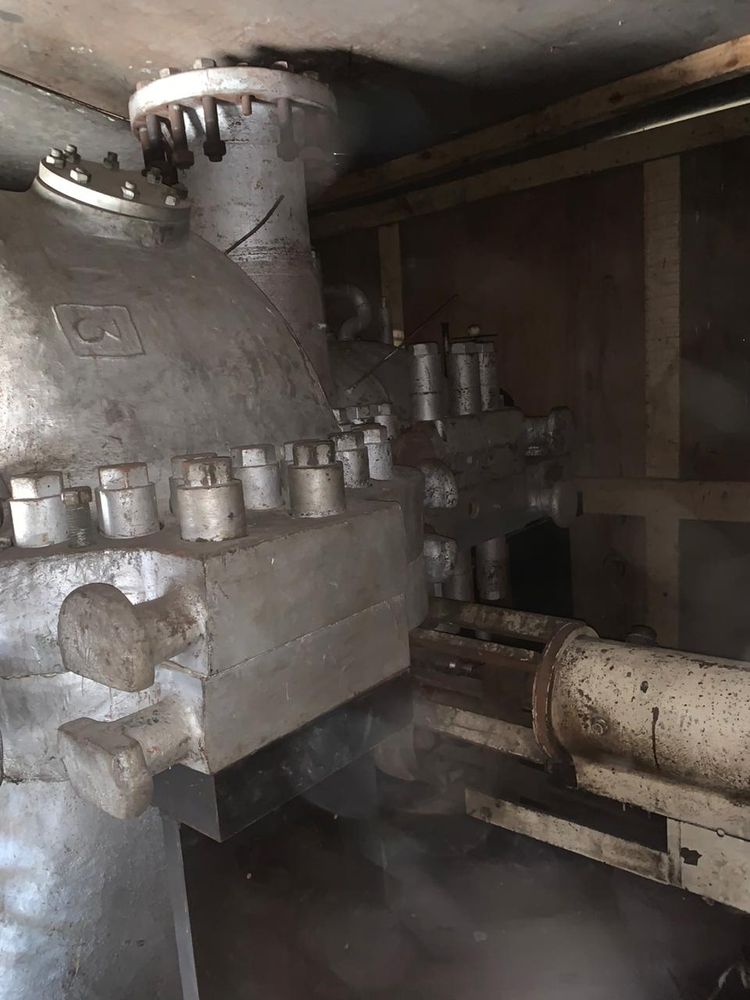

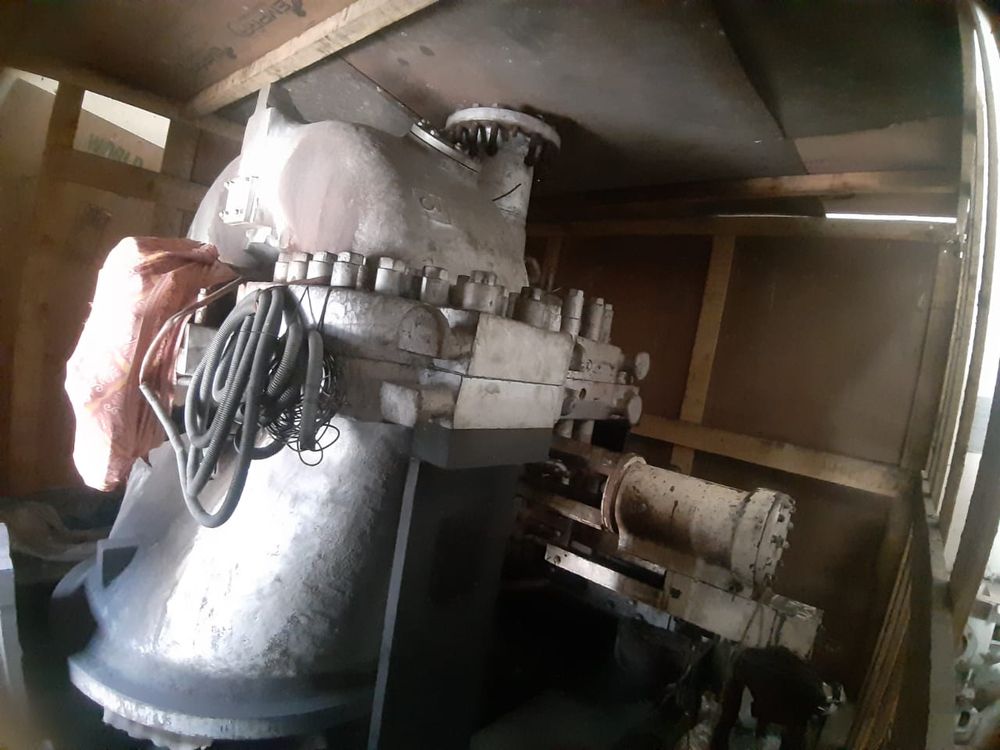

Siemens 5.6 MW Turbine

Turbine Type Blead, Extraction and Condensing
Capacity of Turbine MW 5,6
Inlet Steam Flow TPH 41,5
Operating Pressure Kg/cm2 65
Operating Temp. °C 485

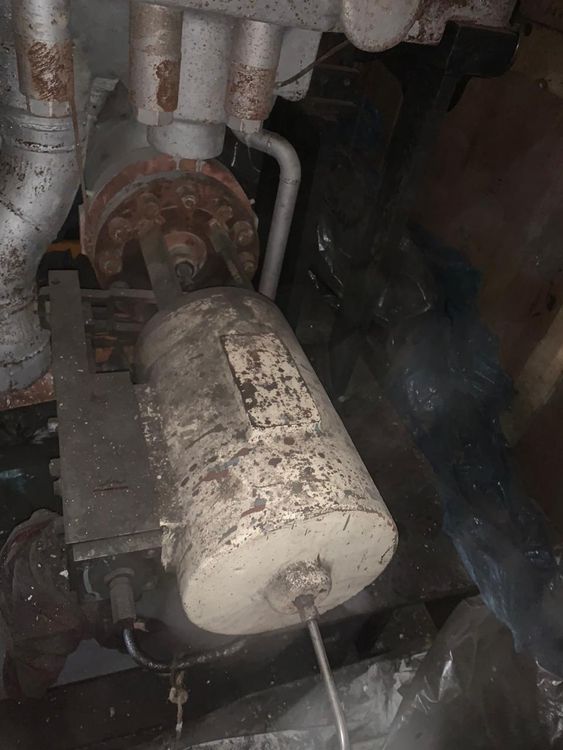

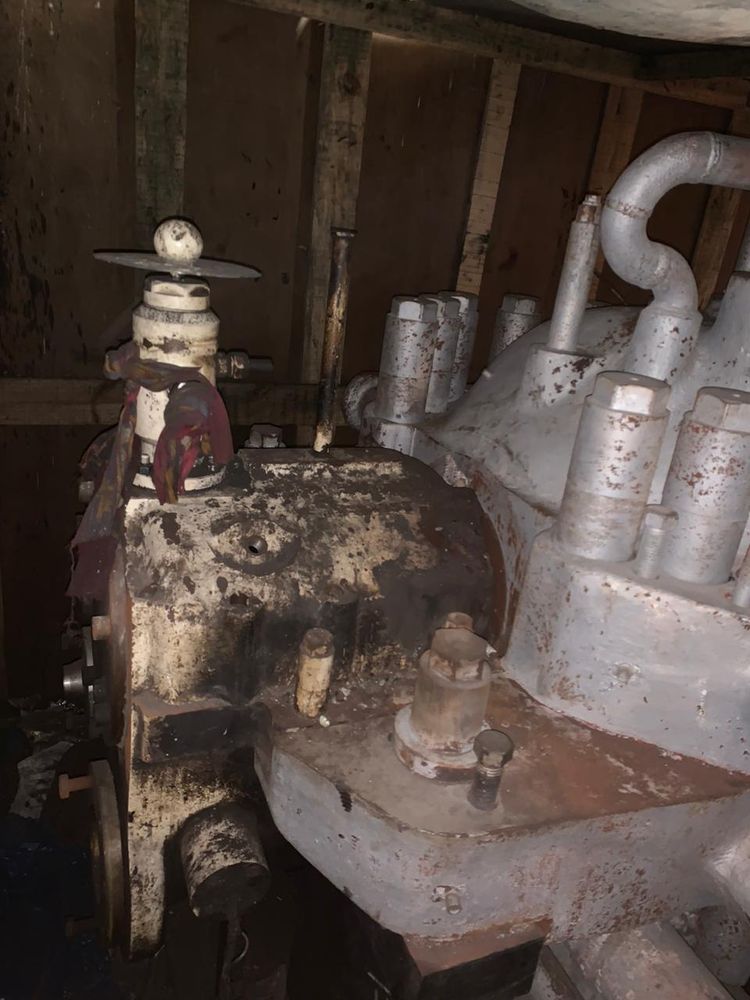

Turbine with Base Frame, Copmleate ESV and HP Actuator, LP Actuator, High Speed Coupling and Low Speed Coupling and Gear Box Hub
Lubrication ISO VG46

Blead
Blead Pressure Kg/cm2 11
Blead Temp °C 290
Blead Capacity TPH 12

Extraction
Extraction Pressure Kg/cm2 4,5
Extraction Temp °C 230
Extraction Capacity TPH 22

Condensing
Vacuum Pressure Kg/cm2 -0,93
Minimum Condensing TPH 7,5
Maximum Condensing TPH 19

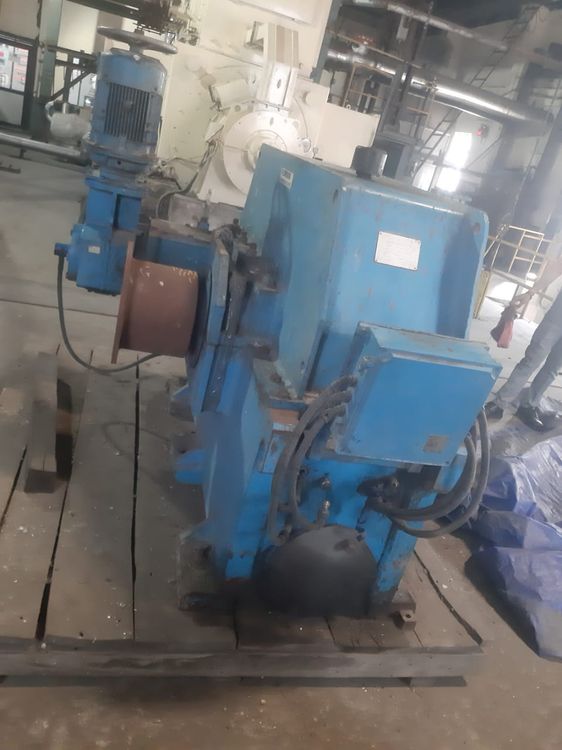

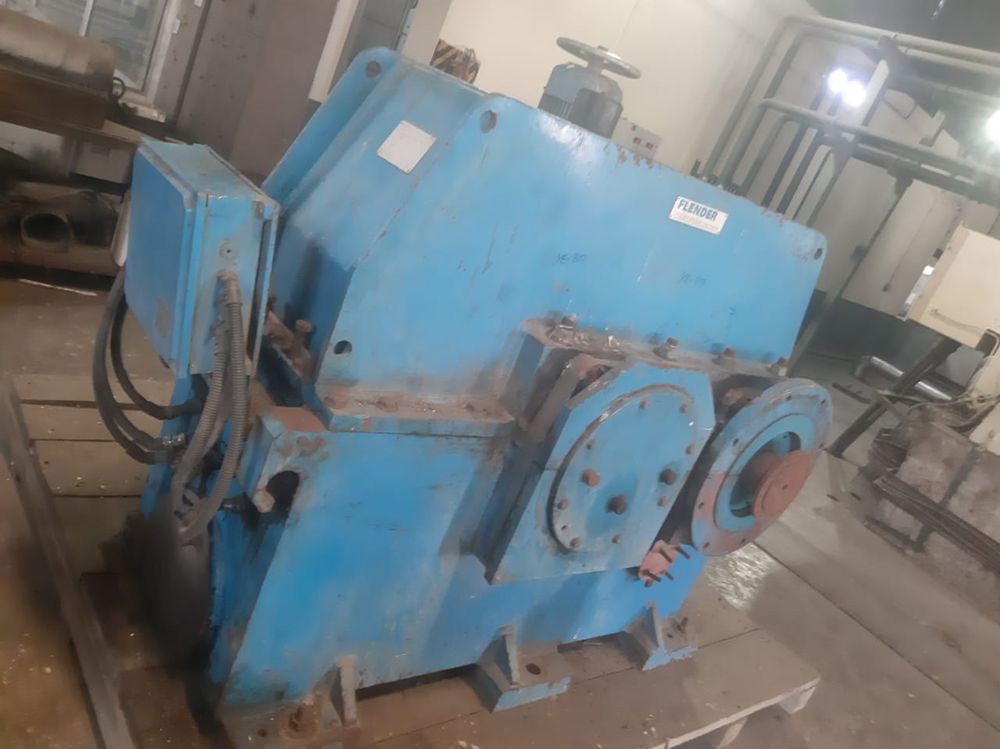

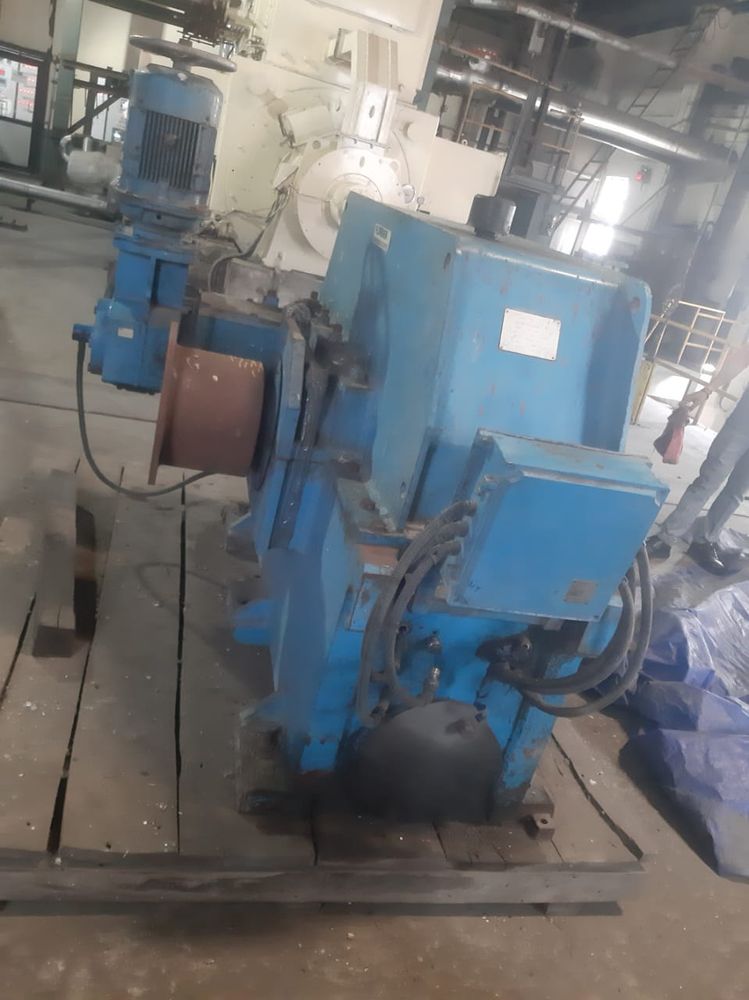

Gear Box
Make FLANDER
Year of Mfg 2006
Type TX56/6C
Power KW 6025
Input RPM RPM 10000
Output RPM RPM 1500
Lubrication ISO VG46
Output RPM RPM 1500
Lubrication ISO VG46
