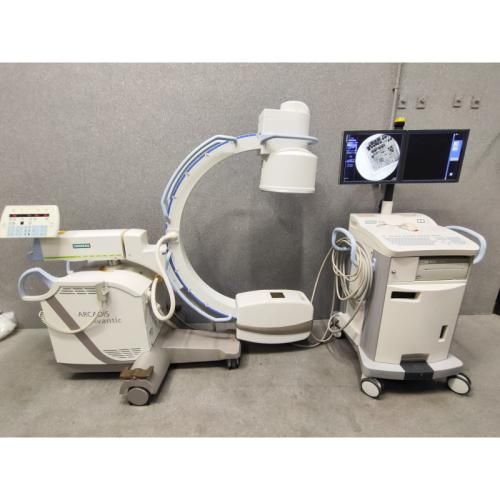

Siemens ARCADIS Avantic

Accessories :
Hand remote controller

Options :
YOM: 2009
SW: VC10A
Imaging Options: Ortho/Trauma General Cardiac

Features
Counterbalanced C-arm with 132° orbital movement
Immersion depth up to 73 cm for optimized patient access
Motorized vertical travel of 38 cm
Electromagnetic brakes with color-coded controls
Lightweight trolley with dual 19-inch TFT monitors, rotatable at 180°
Intuitive syngo interface with optimized navigation
Full DICOM 3.0 connectivity (storage, printing, Worklist, Query/Retrieve)
Archiving options: hard drive (60,000 images), USB,
CD/DVD with built-in viewer
Wi-Fi option for wireless image transfer
CARE system for radiation dose reduction
Adjustable collimators with iris diaphragm and
semi-transparent slot diaphragm
Dose measurement system
Integrated laser aimer
Remote control for sterile field operation
EMotion audio system with built-in speakers

Technical Details
Generator: POWERPHOS high-frequency, maximum power output of 25 kW
Voltage range: 40 kV to 125 kV
Tube current: up to 250 mA in radiography mode
Heat capacity: 2.57 MHU
Image intensifier: 33 cm (13 inches) with Mu-metal shielding
TV matrix: CCD 1K² (1024 x 1024 pixels)
Acquisition modes: continuous fluoroscopy up to 30 fps,
pulsed fluoroscopy up to 30 fps, digital radiography up to 250 mA,
digital subtraction angiography

Compatible Accessories
Remote control for C-arm operation from a distance
Multifunctional footswitch for imaging activation and mode selection
Sterile covers for the C-arm, X-ray tube, and image intensifier
External monitors and digital printers for direct image printing
Integrated dose measurement system
