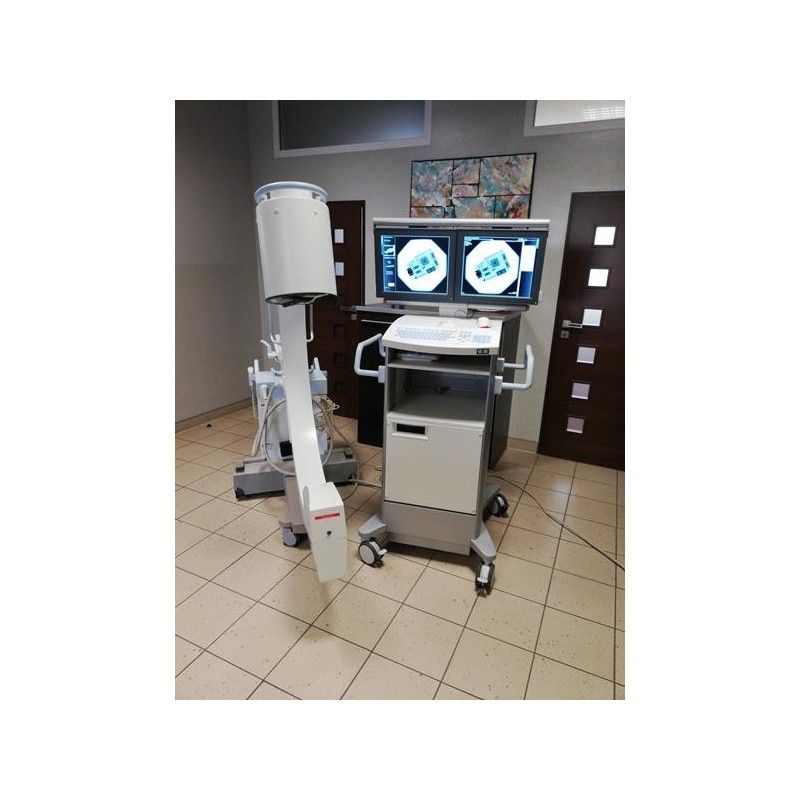

Siemens Arcadis Varic

X-ray Generator
Nominal Power: 2.3 kW at 100 kVp
mAs Range: 0,2–5 mAs in 23 steps
Snapshot (Tube Current): 0.2–23 mA
Voltage Range: approx. 40–110 kV
Exposure Time: 0.5–10 s
Pulsed Fluoroscopy: Yes, up to 15 frames/s

C-Arm
Image Intensifier: 9″ (optionally 6″)
Image Resolution: 1024 × 1024 (1K × 1K), 12-bit
Orbital Rotation: +90°/–40° (total 130°)
C-Arm Depth: 73 cm
Free Space Within the C-Arm: 78 cm
Vertical Movement of Detector (Motorized): 40–45 cm
Horizontal Travel: 20 cm
Panning Motion: 12.5°
Pivot Rotation: 190°

Imaging System and Interface
Camera: High-resolution CCD camera
Monitors: Two 18–19″ LCDs, height adjustable, rotatable by 180°
Image Memory: Up to 60,000 frames
Data Export: DICOM 3.0, CD/DVD, USB

Dimensions and Weight
C-Arm Dimensions: 173 × 81 × 173 cm
C-Arm Weight: approx. 236 kg
Monitor Cart Weight: approx. 180–275 kg
Footprint: approx. 2.4 m²

Power Supply
Mains Voltage: 230 V, 50/60 Hz
Power Consumption:
