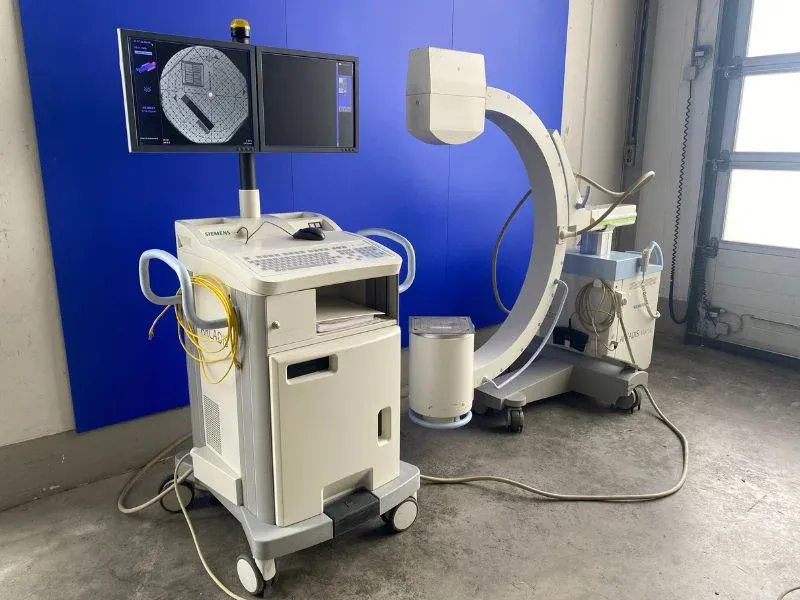

Siemens ARCADIS Varic

C-arm
Orbital movement 130° (-40° to +90°)
Angulation ± 190°
Horizontal movement 20cm
Immersion depth 73cm
Swivel range ±12,5°
Vertical travel 45cm motorized
Source-I.I. distance 100cm
Free space 78cm

X-Ray generator/Tube
Max. pulsed output 2,3kW
Inverter control frequency 15kHz to 30kHz
kV range 40kV to 110kV
Fluoroscopy 0,2mA to 15,2mA (max. 1000W)
Digital radiography 0,2mA to 23mA (max. 1000W)
Cassette exposures Max. 20mA
Pulsed fluoroscopy
Pulse width
Pulse rate
Up to 23mA
Min. 7 ms
Up to 8 p/s, up to 15 p/s
Power mode Enables temporary max. output in
continuous fluoroscopy and pulsed fluoroscopy
