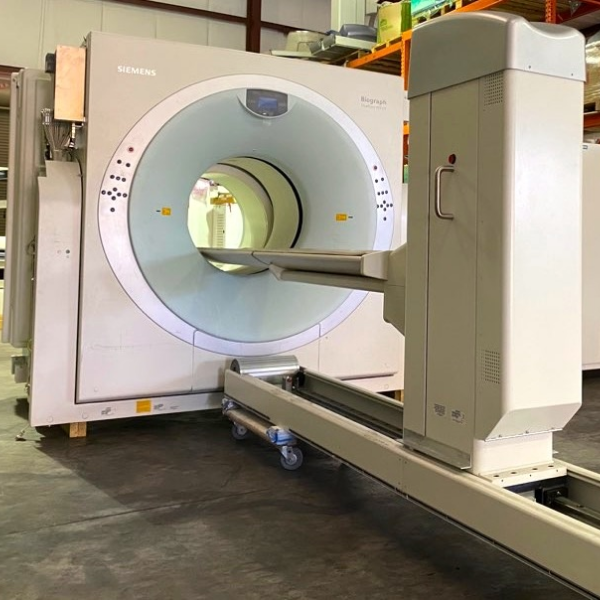

Siemens Biograph Tru Point

Siemens Biograph is a flexible, high-powered medical imaging platform.
It offers an wide range of performance options to enhance image resolution and
quality, improve patient satisfaction as well as throughput.
Customize the Biograph™ solution to meet your specific needs by
selecting from various multislice CT configurations,
high or standard resolution options, and clinical configuration options

Siemens Biograph 40 / 64 System Features:
Patented PET Detector Assembly Biograph 16, 40, 64
Detector material Lutetium Oxyorthosilicate (LSO)
Crystal dimensions 4.0 x 4.0 x 20 mm
Crystals per detector block 169
Number of detector blocks 144 (192 with TrueV option)
Photomultiplier tubes (PMTs) 4 per block
Detector ring diameter 842 mm
Detectors per ring 624
Number of detector rings 39 (52 with TrueV option)
Total number of detectors 24336 (32448 with TrueV option)
Transaxial FOV 605 mm
Axial FOV 162 mm (216 with TrueV option)
Number of image planes 81(109 with TrueV option)
Plane spacing 2 mm
PET Data Acquisition/Processing Biograph 6, 40, 64
Coincidence time resolution 500 psec
Coincidence window 4.5 nsec
Acquisition mode Static, multibed (dynamic, gated optional)
Scatter fraction '
