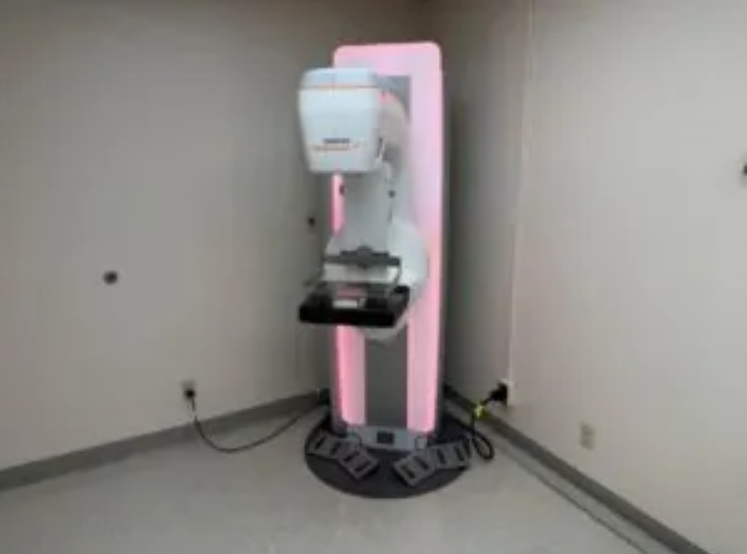

Siemens MAMMOMAT Revelation

Siemens MAMMOMAT Revelation
YOM 2020
DATE 2025.10.20

SYSTEM INFORMATION
Manufacturer and model Siemens MAMMOMAT Revelation
System model no. 11343300
System YOM 2020
System type – screening or biopsy Screening
Tomosynthesis option Present

TUBE INFORMATION
Tube manufacturer Siemens
Tube model P40 MoW
Tube model no. 03122509
Tube YOM 2020.08

DETECTOR INFORMATION
Detector type LMAM2V2
Detector model no. 11513480
Detector serial no. LV2-34532
Detector YOM 2021.04

CONSOLE AND WORKSTATION(S) INFORMATION
Console software version VI20B
Operating system Windows 10 Enterprise 2016 LTSB

Console software options
– FILM_VFS
– FILM_PAPER_PRINTER
– SYNGO_GENERAL_LICENSE
– AWS_AUTO_QC
– MR_Support_i
– AWS_PRIMEMODE
– CERA_ALL
– SECURITY_PRIVACY_BASIC
– AWS_INSIGHT_2D
– AWS_RECON_EMPIRE
– AWS_INSIGHT_3D
– MPPS_SUPPORT
– GET_WORKLIST
– AWS_RADIATION_DOSE_SR
– CAP3D_MAIN
– CAP3D_VOIMODE
– CAP3D_FILTER_SSD
– CAP3D_FILTER_MIP

ACCESSORIES, MANUAL HARD-COPIES AND SOFTWARE DISCS
Software hardcopy (CD, DVD, SDD, etc.) Present
Service manuals Present
Operator manuals Present

Accessories
– Moodlight option
– Wall-mounted paddle holder
– Acquisition console with adjustable height

PHANTOMS
Model name Amount
Gammex Mammo 156 Phantom 1
Calibrations phantom 1
AEC calibration plexiglass 2 cm 3
AEC calibration plexiglass 1 cm 1
Lead plate 1

ACCESSORIES
Model name Amount
Compression plate Mag spot focus 1
Compression plate Mag 16 × 20 1
Compression plate 24 × 30 H 1
Compression plate 18 × 24 High 1
Compression plate Tomo 12 cm × 24 cm 1
Compression plate Tomo 18 cm × 24 cm 1
Compression plate Tomo 20 cm × 26 cm 1
Compression plate 24 x 30 Low 1
Compression plate 25 × 36 Tomo Paddle 1
Compression plate Spot Plus 1
Face-Shield Multiapplication 1
Face Shield for Tomo (Tomosynthesis) 1
Compression Plate MAG SPOT 9 × 9 1
Compression plate; Contact; Spot 1
Magnification table 1.8 1

QA TESTING
Detector Calibration – Contact Mode PASSED
Detector Calibration – Magnification Mode PASSED
Detector Calibration – Tomosynthesis Mode PASSED
AEC Test ACCEPTED
Detector Uniformity PASSED
Mechanical Tests PASSED

COMMENTS
Functional condition Good
Cosmetic condition Good
