Siemens SINAMICS Frequency converter
EUROPE (Western and Northern)

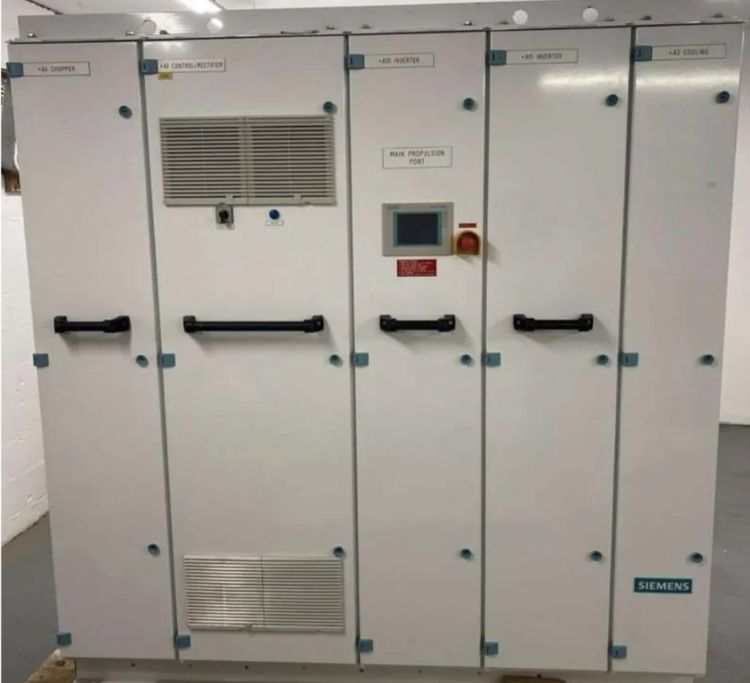

Frequency converter from SIEMENS, 2400 kW/690 VAC, installed and commissioned by Siemens Energy Norway.
The equipment was originally intended for a hybrid fishing boat project, but the project never went ahead. Everything is unused and has been in storage for some time.

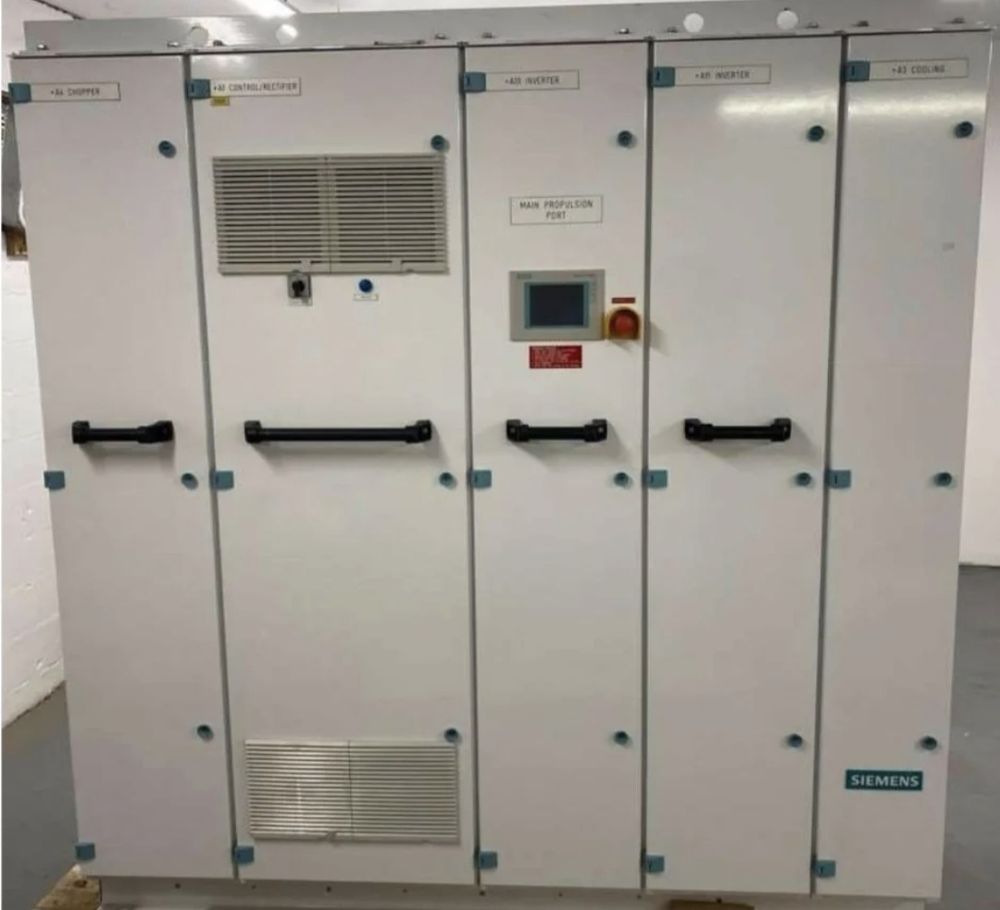

Main Propulsion Port – Siemens

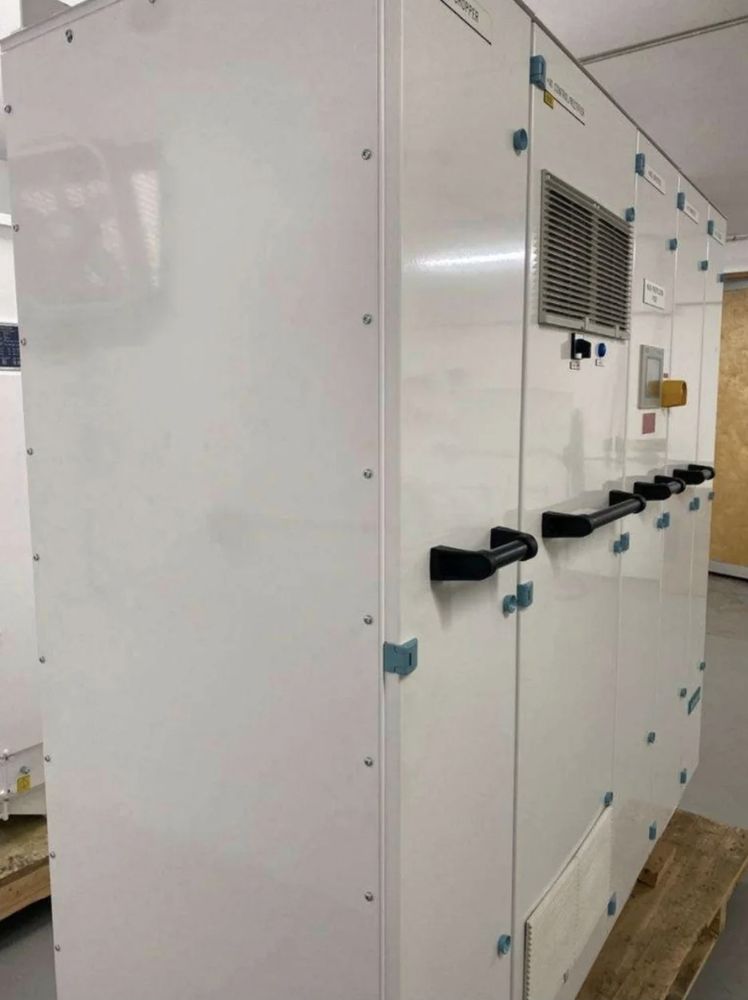

Siemens SICUBE Cabinet
1st Section: A4 Chopper

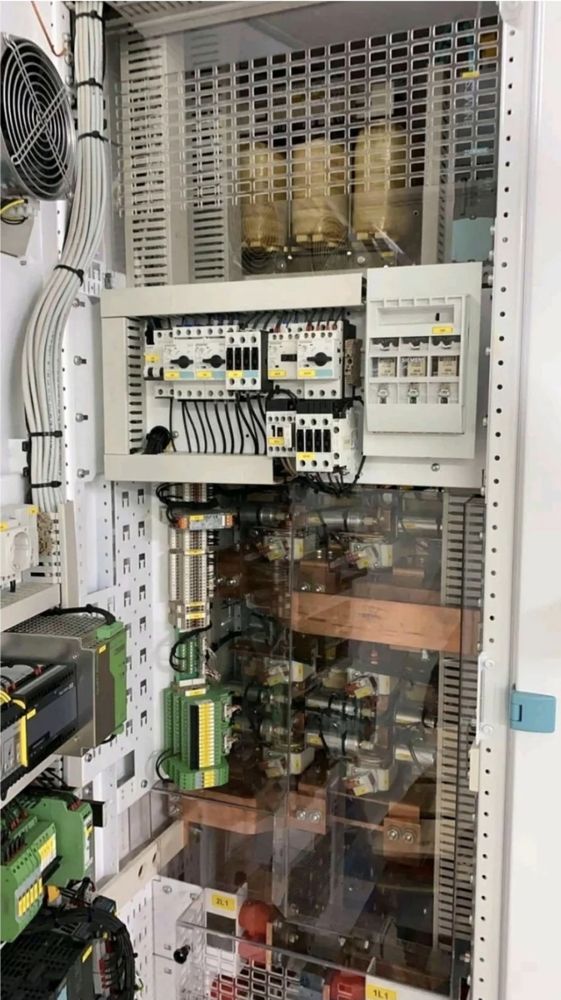

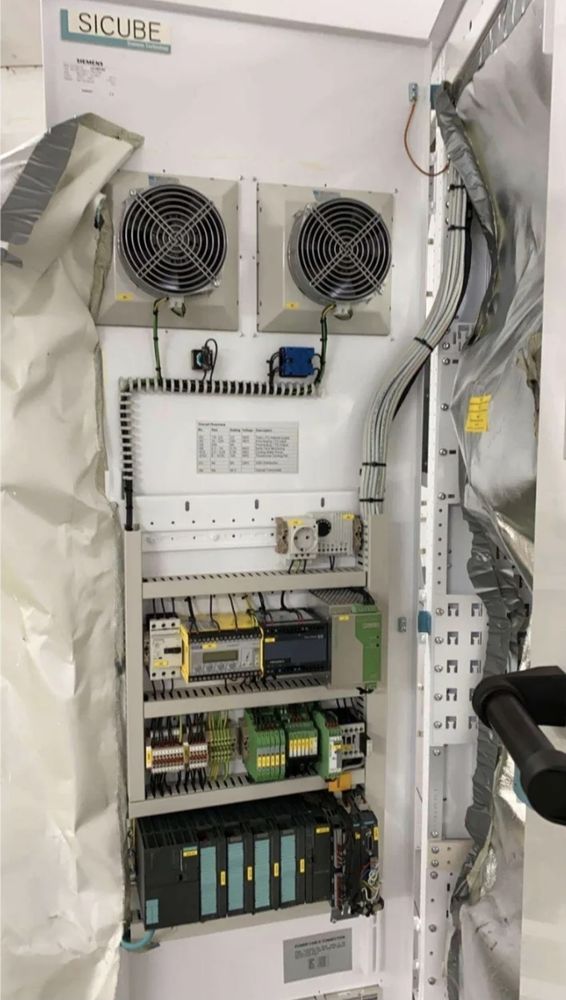

2nd Section: A1 Control and Rectifier

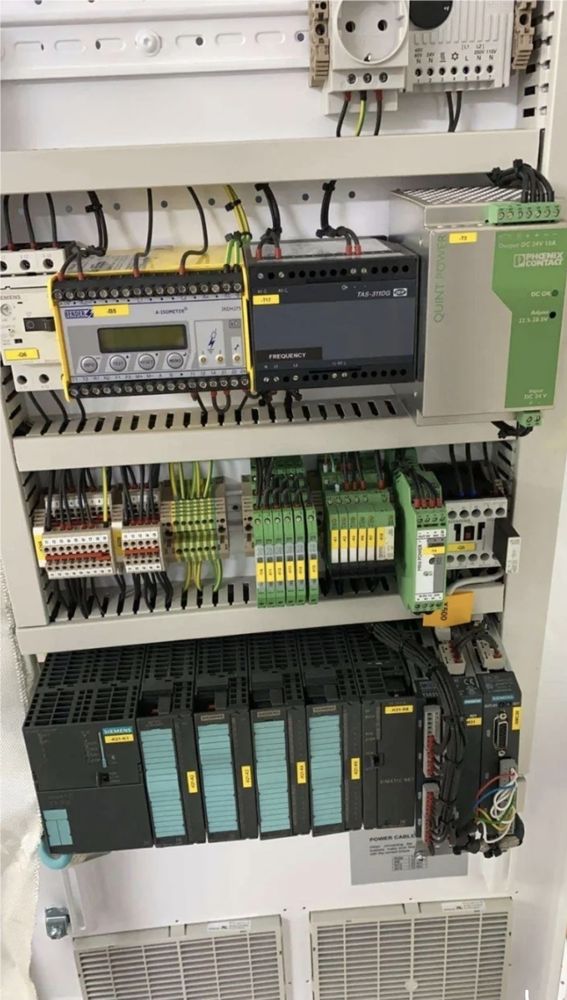

PLC S7-300, CPU 315-2 PN/DP

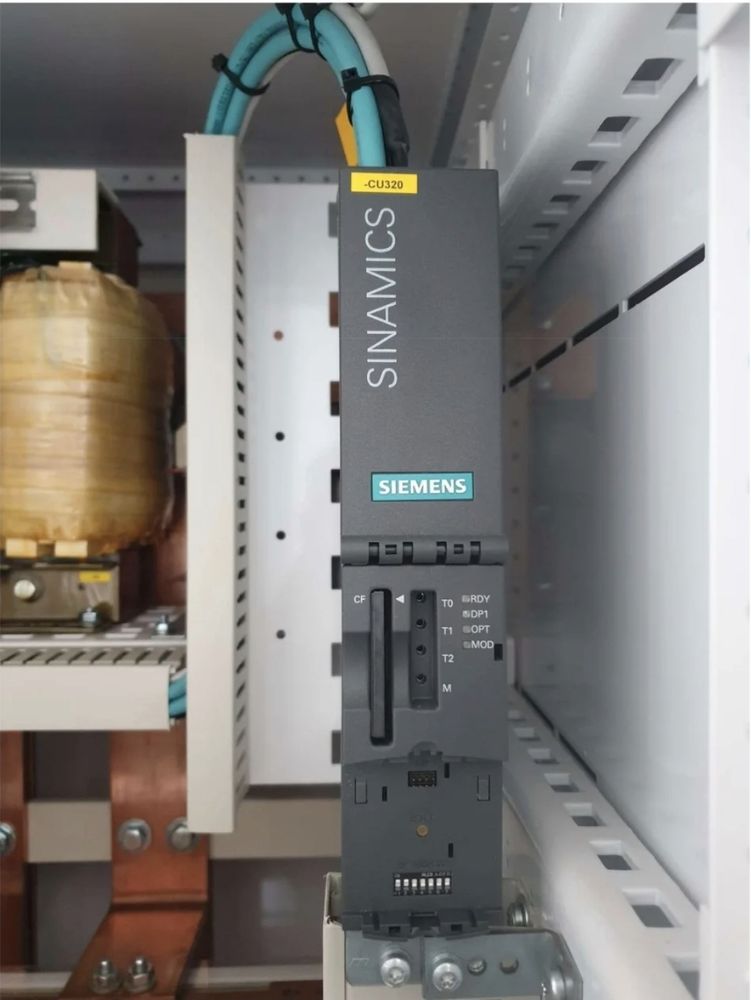

SINAMICS Control Unit CU320
SIMATIC NET
Communication Processor CP 342-5
Siemens analog modules
Siemens digital modules
Bender Isometer
Frequency relay TAS-311DG, etc.
3rd Section: +A10 Inverter, + Siemens HMI 6" Touch Panel

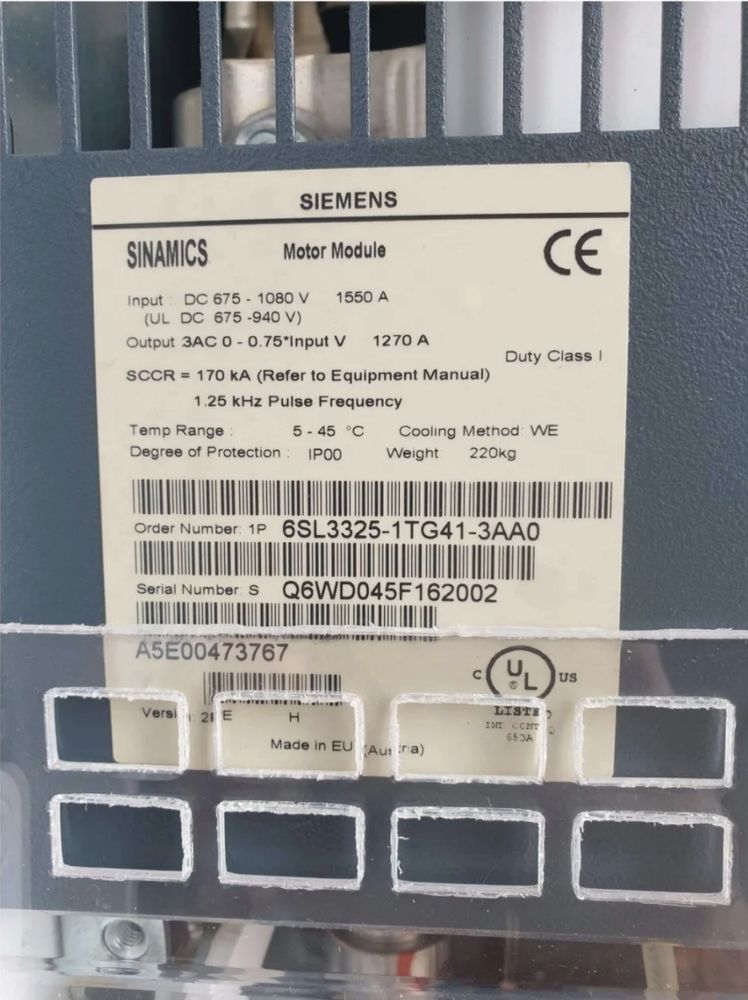

SINAMICS Motor Module, Duty Class I
Model: 6SL3325-1TG41-3AA0
Serial number: Q6WD045F162002
Input: DC 675–1080 V, 1550 A
Output: 3-phase AC, 0–0.75 × input voltage, 1270 A, 1200 kW
SCCR = 170 kA (see equipment manual)
Pulse frequency: 1.25 kHz
Weight: 220 kg
4th Section: +A11 Inverter
SINAMICS Motor Module, Duty Class I
Model: 6SL3325-1TG41-3AA0
Serial number: Q6X7095F161002
Input: DC 675–1080 V, 1550 A
Output: 3-phase AC, 0–0.75 × input voltage, 1270 A, 1200 kW
SCCR = 170 kA (see equipment manual)
Pulse frequency: 1.25 kHz
Weight: 220 kg

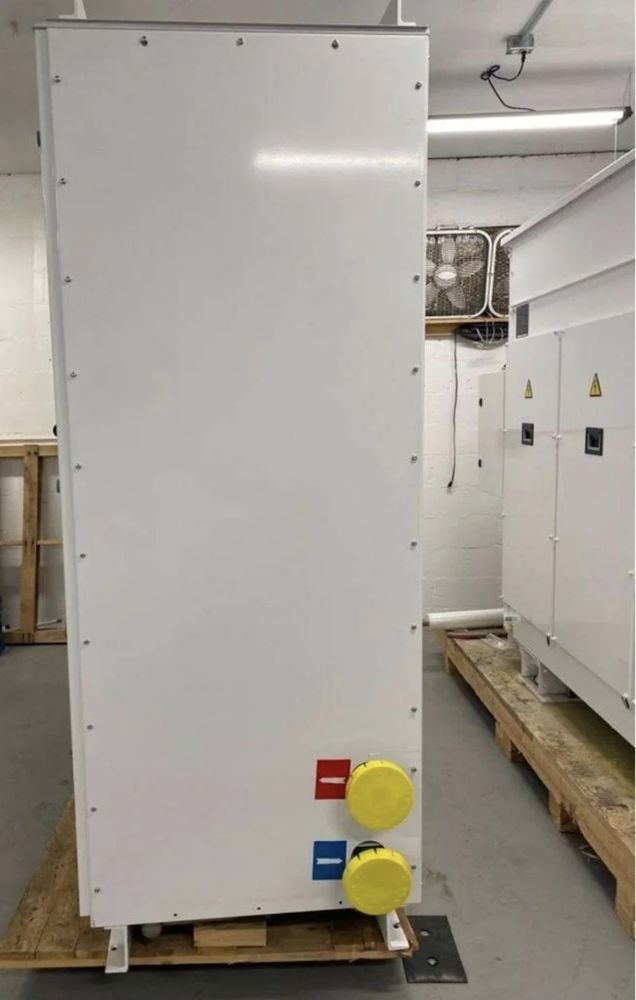

5th Section: +A3 Cooling System
