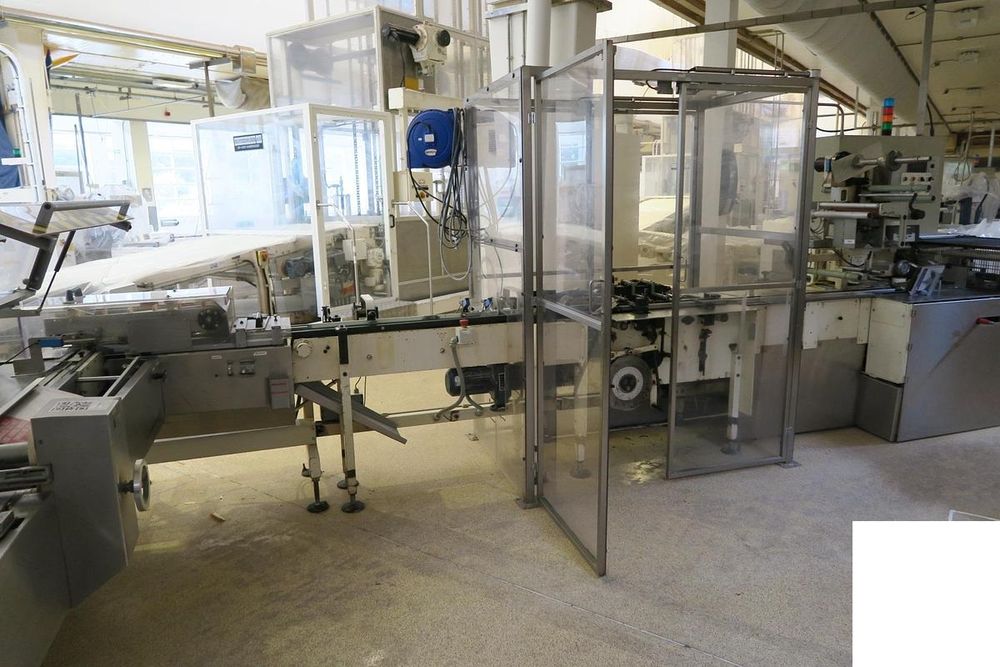

Autowrapper, Sig Biscuits moulding line

3 x Autowrappers Flowtronic 410 Machines
Single wrap flow wrap.
Previously wrapped Breakaway biscuit and tablet style bars at speeds of up to 400/min (315/min nominal)
Fed into multipack machine or can feed out onto hand packing conveyor.
Year of manufacture/install: 1993/1994
Control - Allen Bradley
3 phase 415v 50hz
Dimensions - L5430mm x W2830mm (including infeed belts) Length of infeed belts 1680mm.
Current max cut width 100mm
Some change parts available for tablet bars (larger pitch chain etc. for longer bar).



2 x Autowrappers Flowtronic 120SE multipack machines
Year of manufacture: 2002
Control system Allen Bradley
Previously ran pack formats -
5,6,7,8,9,12,16,22 single and double layer with Nestle biscuit product (approx 30mm width per bar). These machines are capable of triple layer although never ran with this.

Cutter width - 155mm
Machine - L6490mm x w1300mm
415v 3 phase 50hz
up to 53 packs per minute. Speed governed by single flow wrap output.
No change parts, machine adjustable.



3 x Autowrapper Flowtronic 120 single flow wrap machines
Year 2000
3 phase 415v 50hz
Control: Allen Bradley
Ran speeds up to 400/min
Cutter width 155mm

Packed single biscuit style bar and tablet. Feeding to multipack machine. One of the three machines has the facility to bypass the multipack to hand pack.
No change parts. To run longer tablet new infeed chain would be required with larger pitch between pushers.

Machine dimensions (approx) L5350mm x W1250mm + infeed belt feeding on at 90 degrees L2050 x W1000mm (belt width 200mm.)
4 x SIG SB Multipack Machines
Control: Allen Bradley
3 phase 415v 50hz
Formats capable of doing: 5 pack, 6 pack, 7 pack, 8 pack, 9 pack - All 4 machines.
Machines 007 and 010 have double layer capability although not used.

Some change parts available to change pack formats.
Machine Dimensions L6010mm including transfer from singles x W1400mm
1 x hand fed multipack machine with Kora Packmat infeed cassette No info available. Machine was purchased brand new for a project but rarely used.
Dimensions (approx)L5090mm x W1400mm
Allen Bradley control with Markem Smart Date 5 coding unit
