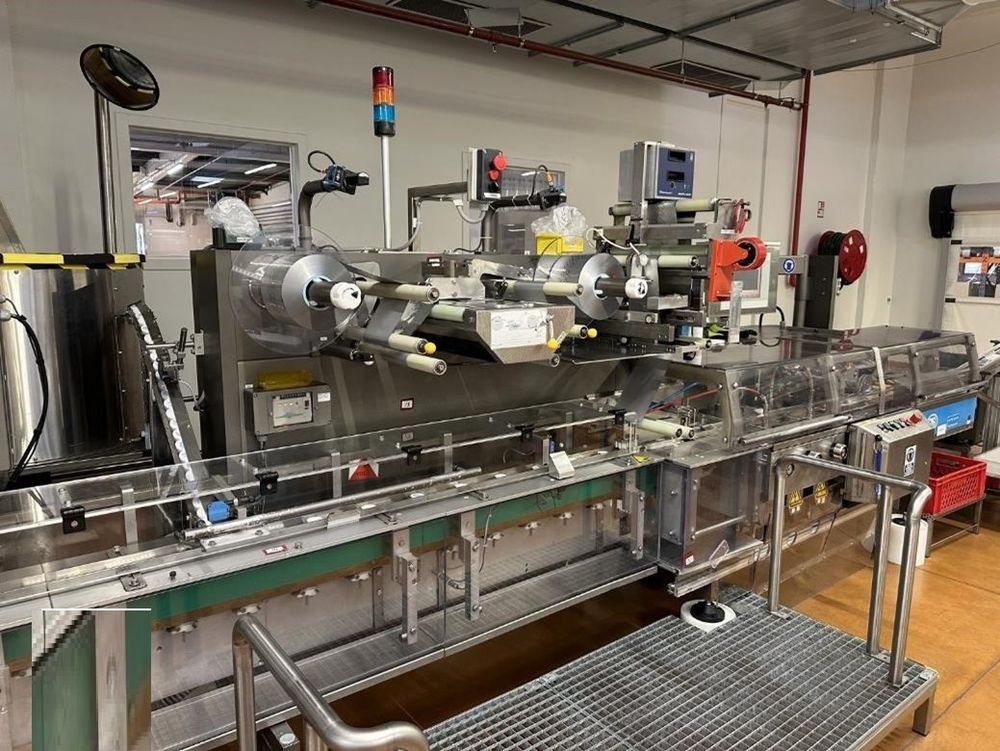

Sig Flowpack line Bagging machine + Cartoning machine

Flowpack line Bagging machine + Cartoning machine
Composed of: sachet filler + Cartoner

Bagging machine (6353) :
Description: Automatic machine for sachet filling and sealing, for pharmaceutical and cosmetic industries
Manufacturer: SiG
Model: HSL
Year: 1998 (refurbished in 2005)
Power: 3 x 400 V / 50 Hz, 23 A; Compressed air: 4 – 6 bars (max. 87 psi.)
Capacity: 1 or 2 unit/blisters 105×50 (L x l)
Max. Length = 165 mm. / Max. width = 130mm
Desiccant bag Ø 40, Thickness = 5mm.
Speed: 150 flowpacks/minute
Formats: available, details on request
Printing: Videojet DataFlex 6530 system
Overall Dimensions (L x w x h): 7767 x 1866 x 2140 mm approximately (h. max.=2390).
Blister feeding unit
PLC: Siemens Simatic S5
Technical documentation: complete (user manual, spare parts, PLC and electric documentation, instructions for format change …)
Weight: 2400 kg
Spare parts: Yes, available

Cartoner (6356) :
Description: Automatic machine for cartoning products. For pharmaceutical or cosmetic industries
Manufacturer: UHLMANN
Model: C 2205
Year: 1999
Power supply: 3 x 400 V / 50 Hz, 4 kW; Compressed air: 6 – 8 bars (max. 115 psi.)
Capacity: Min. 30 x 15 x 63mm (A x B x H)
Max.100 x 90 x 150mm
Speed: 50 to max. 200 cartons/min.
Dimensions (L x w x h): 4200 x 1750 x 1900 mm approximately.
Weight: 4000 kg
Printing: no
Spare parts: no
