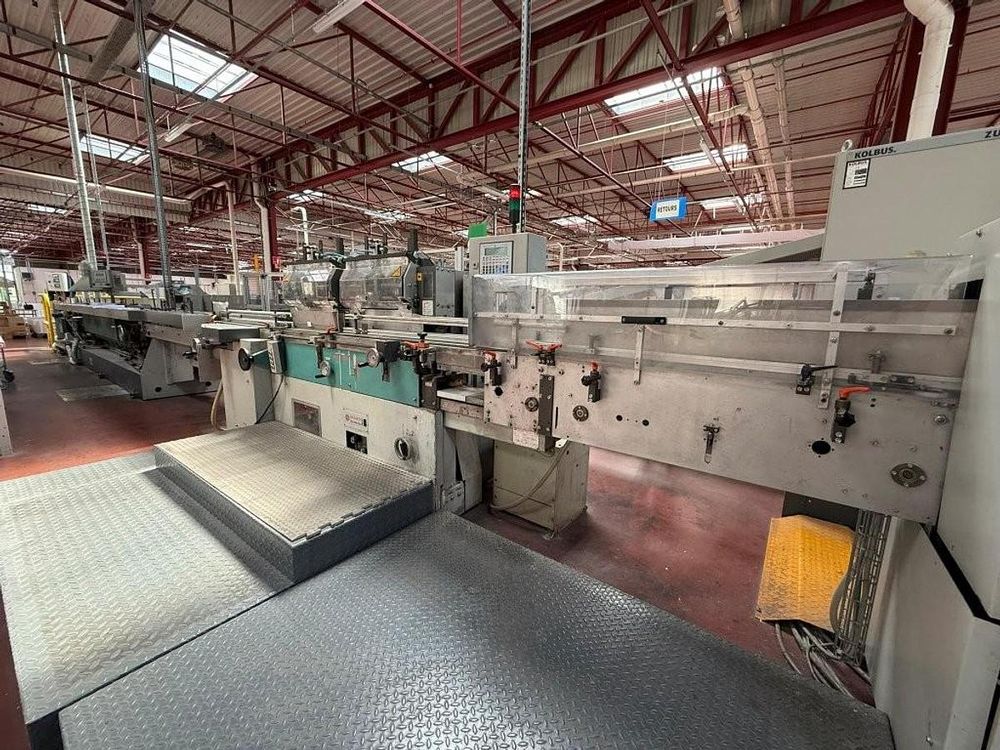

Sigloch SB 3000/2 Book Block Production Line

Condition Used
For gluing and lining of thread sewn book blocks.

Overview:
VAM End Papering Machine
SB 3000/2 Book-Back Gluing and Back-Lining Machine
Drying System
DNH Double-Line Nipping Press
SOLEMA ADAGIATORE SX Lay-down Device

Configuration:
VAM End Papering Machine
inline production
cold glue gluing system
straight delivery

Technical specifications:
mechanical speed: up to 70 cycles/min
size range untrimmed max.: 420 x 320 x 80 mm
size range untrimmed max.: 510 x 200 x 80 mm
size range untrimmed min.: 120 x 90 x 3 mm

SB 3000/2 Book-Back Gluing and Back-Lining Machine
feeding channel for handfeeding
interleaved transport chain
1st gluing station with cold glue spine gluing unit
IR heating
2nd gluing station with Hotmelt spine gluing unit and premelter
lining strip forming and rub-down station

Technical specifications:
mechanical speed: up to 70 cycles/min
size range untrimmed and pressed max.: 510 x 320 x 80 mm
size range untrimmed and pressed min.: 100 x 90 x 3 mm

Drying System
single-line vertical transport with IR-heater
180 degrees curve
cycle-dividing switch

DNH Double-Line Nipping Press
double-line throughfeed
twin-line version permits double pressing duration
straight delivery

Technical specifications:
mechanical speed: up to 2 x 40 = 80 cycles/min
size range untrimmed max.: 510 x 320 x 80 mm
size range untrimmed min.: 100 x 90 x 3 mm

SOLEMA ADAGIATORE SX Lay-down Device
lay-down to the left
