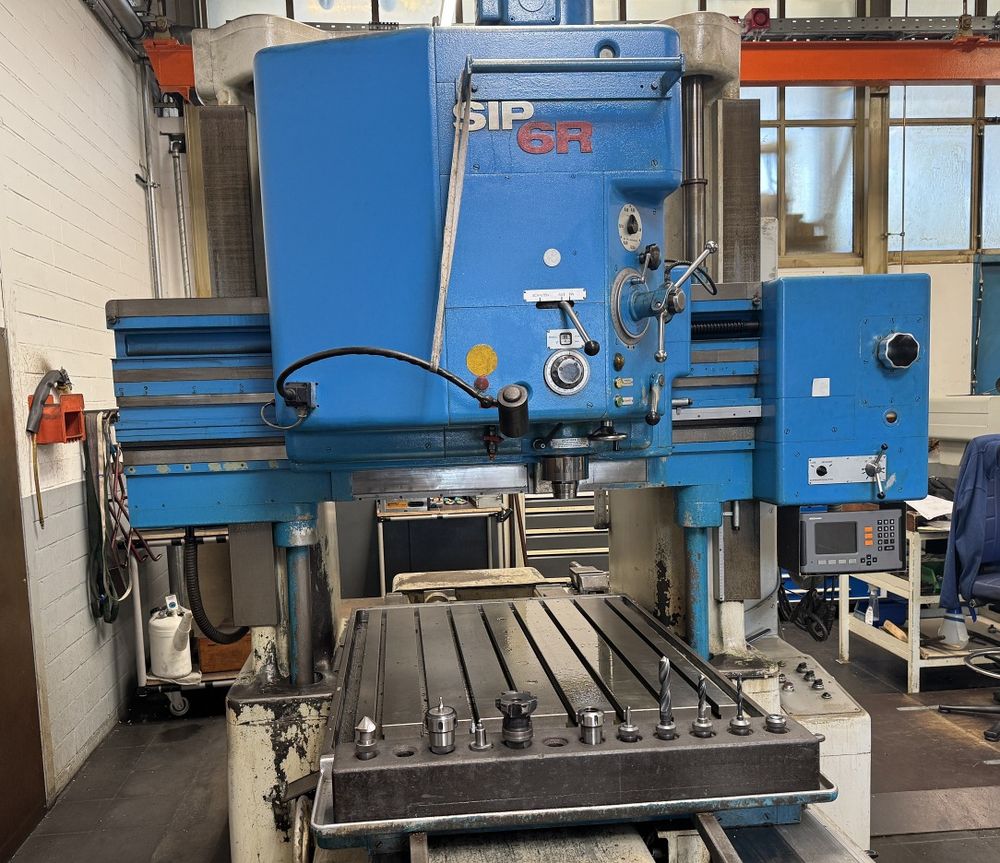

SIP Hydroptic 6R 2000 rpm

Ref : 2792692-3-MT

Condition : Used

Manufacturer : SIP

Model : Hydroptic 6R

Spindle Size : -

Spindle Speed : 2000 rpm

Year(s) : 1980

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

X-axis travel: 950 mm
Y-axis travel: 700 mm
Quill travel: 300 mm
Cross rail adjustment (vertical): 780 mm
Max distance between table and spindle nose: 1000 mm
Distance between columns: 1100 mm

Spindle diameter: 135 mm
Spindle speed range: 40–2000 rpm

Adjustment speed: 5–1500 mm/min
Table surface: 1100 x 842 mm
Table load: 1500 kg

Electrical voltage/frequency: 380/50 V/Hz
Total power requirement: 8 kW

Machine weight: 9.5 t
Machine dimensions: 3.3 x 2.34 x 2.8 m
