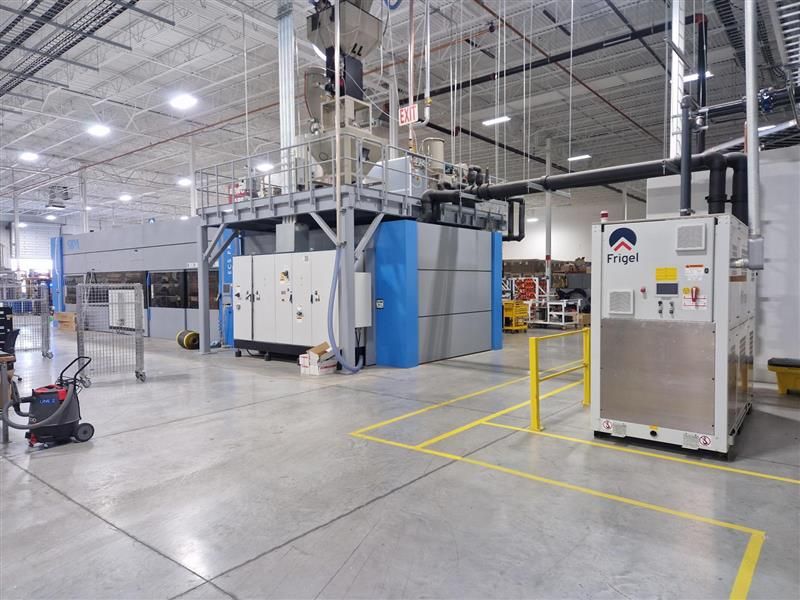

SIPA ECS FX20/64 EVO Injection Stretch Blow Molding Machine

Total number of injection cavities- 64
Number of perform molds- 4
Number of injection cavities per mold- 16
Injection mold pitch- 76 mm
Injection clamp tonnage- 150 metric tons
Extruder diameter- 135 mm
Maximum plastic throughput- 640 kg/hour
Injector volume- 930 grams
Total number of blow cavities- 32
Number of blow molds- 2
Number of blow cavities per mold- 16
Blow mold pitch- 98 mm
Blow clamp tonnage- 136 metric tons
Maximum preform weight- 58.1
Maximum neck finish diameter- 48 mm
Maximum preform height- 170 mm
Minimum cycle time- 8 seconds

Machine is equipped with the following options:
Neck orientation system
Vision system
Support frame for auxiliaries
Polypropylene resin pre-heating system and loading unit

Offer includes the following:
Approximately $150,000 worth of spare parts

Condition- Like new- never ran production
