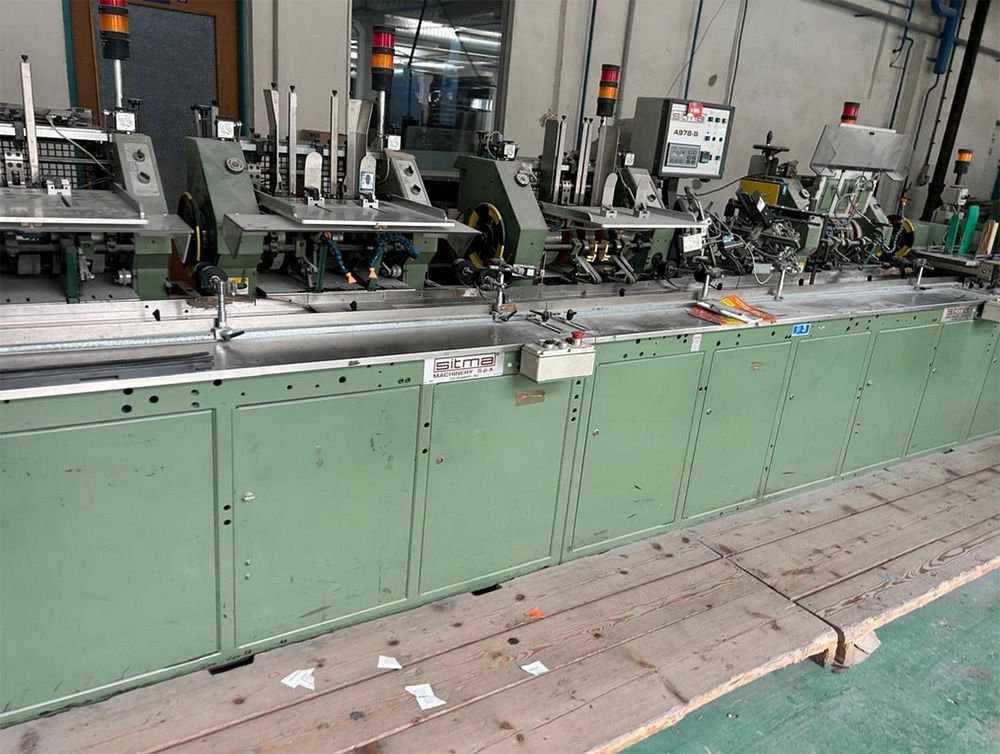

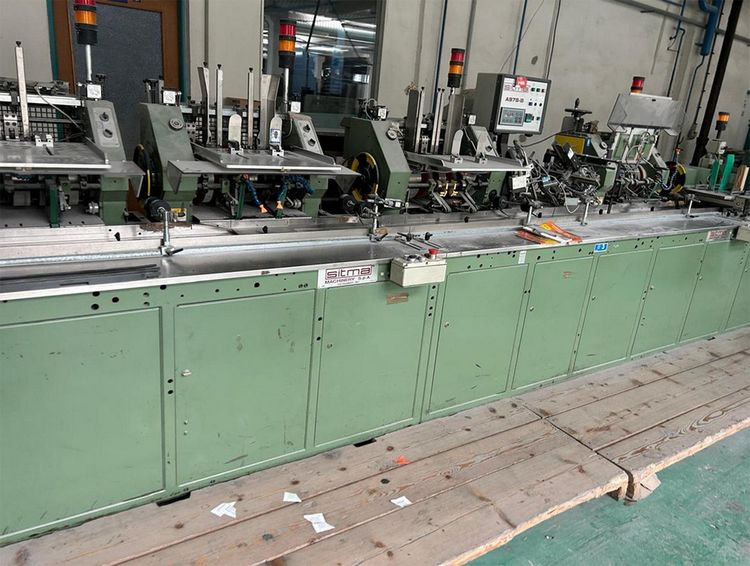

Sitma 750 Inserting Machine

Automatic Inserting and Polywrapping Line for Printed Materials and Direct Mail
A high-performance automatic packaging line designed for collating, personalizing,
and polywrapping printed materials, magazines, catalogs, direct mail items, and other products.
The system enables automatic insertion of multiple inserts, application of three-dimensional items,
address personalization, labeling, and subsequent packaging in shrink or non-shrink film.

Main Features :
Automatic feeding of the main product
Opening of the product under the cover or in the center fold
Insertion of up to 6 flat (2D) inserts
Insertion and optional gluing of one three-dimensional (3D) item
Application of self-adhesive labels
Printing of two independent addresses on the finished package
Film wrapping with side-seal or top-seal configuration
Capability to use pre-printed film with precise registration and cutting
Film shrinking in a heat tunnel
Cross-stacking of finished mail pieces

Packaging Parameters :
Without 3D item
Minimum size: 130 × 150 mm
Product thickness: 2–30 mm
With 3D item
Minimum size: 175 × 250 mm
Total package thickness: up to 30 mm
Maximum 3D item height: 25 mm

Film Specifications:
Film width: 250–700 mm, depending on sealing configuration
Film thickness: 13–50 μm (recommended: 22–35 μm)
Maximum film roll diameter: 600 mm

Advantages :
Modular design
High format flexibility
Integrated personalization, addressing, and packaging
Capability to insert both 2D and 3D inserts
Processing of pre-printed films with precise registration and trimming
SITMA 750 Polywrapping Line
The SITMA 750 packaging line is designed for automatic insertion of supplements,
personalization, application of three-dimensional items, film wrapping, and address printing.

Main Technical Specifications:
Main Product Format
Minimum: 100 × 150 mm
Maximum: 300 × 420 mm
Main Product Thickness 2–30 mm
Maximum stack height in feeder: 60 mm
Insert Capacity :
Up to 6 flat (2D) inserts
1 three-dimensional (3D) item
1 self-adhesive label

Addressing :
Printing of two addresses on the finished package
Package Sealing
Side-seal or top-seal configuration
Compatible with pre-printed film and precise registration cutting

Package Thickness :
2–30 mm without 3D item
Up to 30 mm including 3D item
Film Specifications :
Top seal
Film width: 299–700 mm
Side seal
Film width: 344–600 mm
Recommended film thickness 22–35 μm
