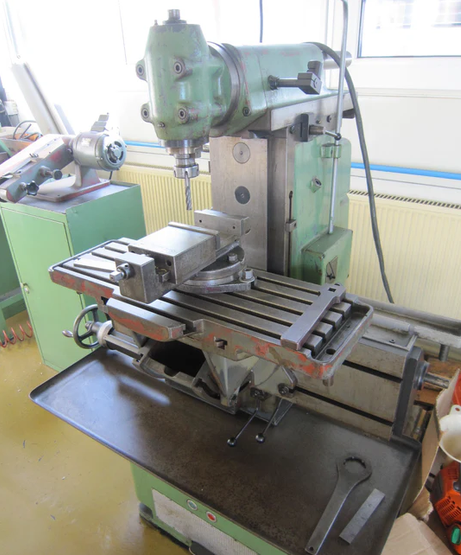

Sixis S 103 Vertical 1200 rpm
Ref :
2810405-3-CP
Condition :
Used
Manufacturer :
Sixis
Model :
S 103
Type :
Vertical
Spindle Speed :
1200 rpm
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
X-axis travel: 450 mm
Y-axis travel: 175 mm
Z-axis travel: 400 mm
Table size: 600 × 210 mm
Distance from spindle to table: 320 mm
Spindle taper: ISO 30
Spindle speed: 60–1200 rpm
9 spindle speed steps
Longitudinal feed: 12–216 mm/min
Vertical feed: 12–216 mm/min
8 feed steps
Rapid traverse (X): 1.0 m/min
Rapid traverse (Z): 0.5 m/min
Voltage: 3 × 380 V / 50 Hz
Motor power: 1.5 CV
Total power: 2 CV
Weight: 880 kg
Machine dimensions: 1100 × 1100 × 1600 mm
