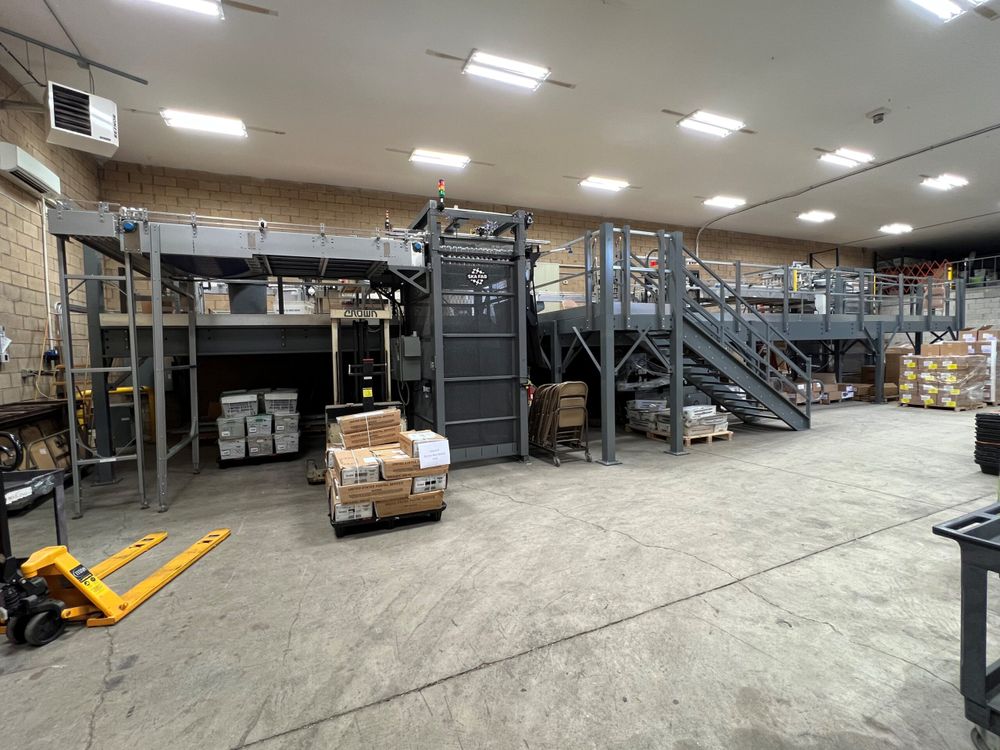

SKA Depalletizer

Mezzanine for system to sit on
Heavy-duty tubular carbon steel frame construction
Industrial powder-coated finish for enhanced
corrosion protection
Heavy-duty aluminum side walls
Accepts 44” x 56” or 48” x 40” pallets
120” discharge elevation
Can be configured to push containers lengthwise (48” side of pallet) or widthwise (40” side of pallet)
FHA 3000 has a 1HP motor with 1000lb lifting capacity
FHA 5000 has 3HP motor with 4,000lb lifting capacity
Integrated four-point cable-lift system built within the frame
Easily adjustable elevation detection system for precise layer indexing
Sweep assembly frame initiates when downstream photo eye indicates space available
Pneumatic slip-sheet removal system with dunnage rack
Pinch-point guarding and safety signage throughout
Fully integrated PLC with quick-access diagnostic screen
Main screen shows how many layers are programmed to run and keeps count of how many layers have ran
20 product (container) presets in product selection menu
Product presets allow for tool-less product changeovers
User friendly HMI touch screen (7” LCD) with auto/manual controls
Multicolor LED stack light indicator for pallet change over and/or machine fault
Electrical panel safety disconnect/lockout and e-stop for operator safety
480V/3 Phase/60 Hertz (additional voltages available)
80-100 PSI clean air supply required – 2-3 CFM
