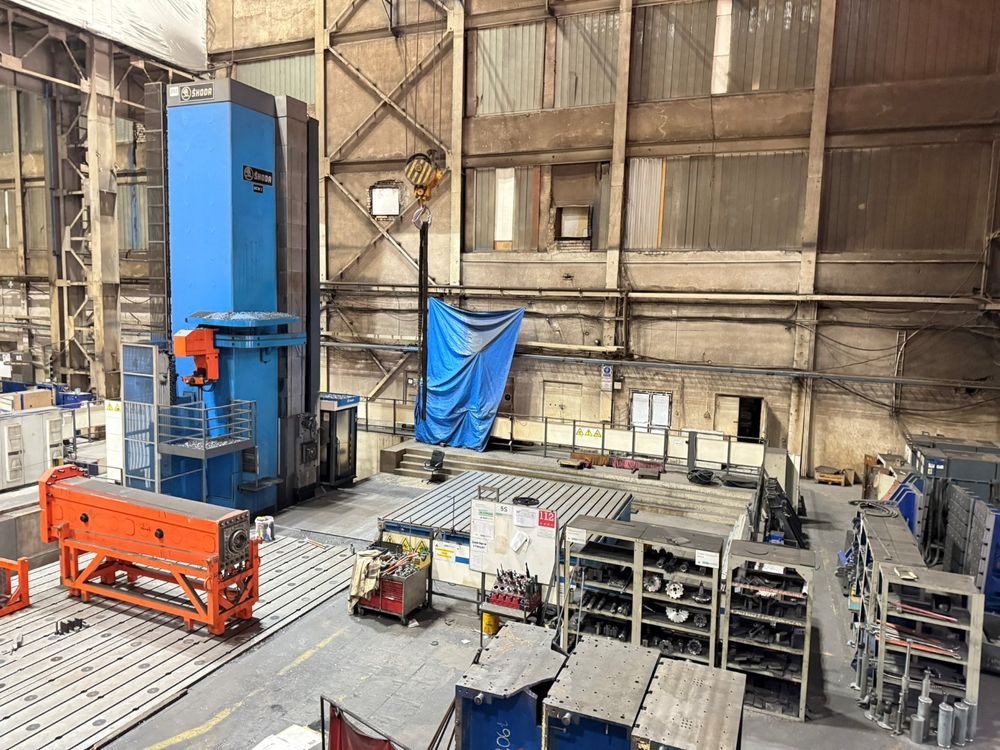

Skoda HCW 3 200 mm 2000 rpm
EUROPE (Western and Northern)
Skoda HCW 3
Year: 2015
CNC control: Heidenhain iTNC 530
Ram size: 520 x 520 mm
Centering diameter on milling spindle: 335 mm
Combined Z+W travel: 3100 mm
X-axis travel: 23000 mm
Y-axis travel: 8000 mm
Z-axis (ram) travel: 1600 mm
W-axis (spindle) travel: 1500 mm
V-axis travel: 5500 mm
B-axis indexing: 0.0001°
V-axis feed rate: max. 10000 mm/min
X-axis feed rate: 0.5–20000 mm/min
Y-axis feed rate: 0.5–15000 mm/min
Z-axis feed rate: 0.5–10000 mm/min
W-axis feed rate: 0.5–10000 mm/min
Spindle taper: ISO 50 BIG PLUS
Spindle speed: 2000 rpm
Spindle gearbox: 3-step
Spindle power: 100 kW
Spindle torque: 14000 Nm
Spindle diameter: 200 mm
Table surface: 5000 x 5000 mm
Table load capacity: 160000 kg
Tool magazine capacity: 60 tools
Max. tool diameter: 300 mm
Max. tool length: 500 mm
Max. tool weight: 30 kg
