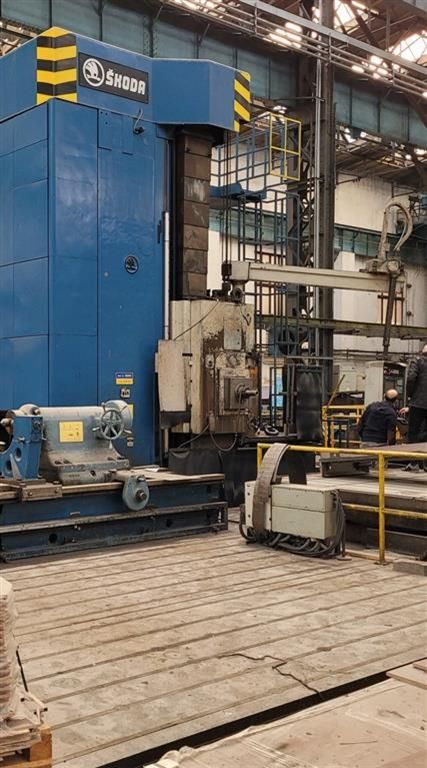

Skoda W 180 NC 180 mm 920 rpm

Ref : 2810487-3-AW

Condition : Used

Manufacturer : Skoda

Model : W 180 NC

Spindle Size : 180 mm

Spindle Speed : 920 rpm

Year(s) : 1997

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

X-axis travel: 6,000 mm
Y-axis travel: 2,900 mm
Z-axis travel (ram): 1,250 mm
W-axis travel (spindle): 1,000 mm
SIEMENS 840C CNC control
Motorized CNC rotary table
B-axis
V-axis
Indexing: 0.001°
Rotary table indexing: 4 × 90° to 360°
Spindle diameter: 180 mm
Quill extension: 1,250 mm
Quill dimensions: 450 × 450 mm
Boring spindle stroke: 1,000 mm
Boring spindle speed: 920 rpm
Rotary table: 3,000 × 3,500 mm
Maximum rotary table load: 40 t
Clamping plates: 3 × 8,000 × 2,000 mm
Cross travel: 1,230 mm
Power requirement: 95 kW
Machine weight: 130 t (with accessories)
