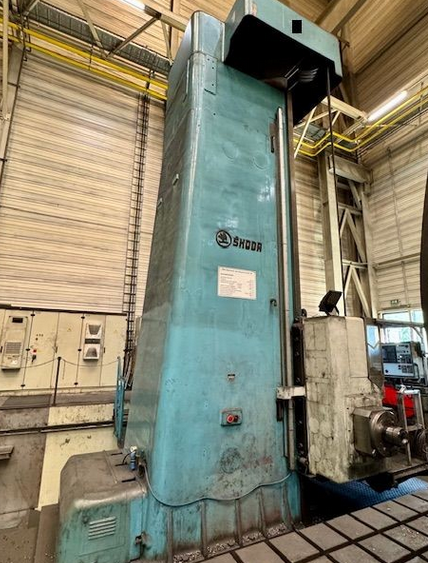

Skoda W200 HA/NC 200 mm 930 U/min
Ref :
2740877-3-MT
Condition :
Used
Manufacturer :
Skoda
Model :
W200 HA/NC
Spindle Size :
200 mm
Spindle Speed :
930 U/min
Year(s) :
1986
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
1999 CNC Retrofit
X-axis travel 8,000 mm
Y-axis travel 4,150 mm
W-axis travel 2,000 mm
Z-axis travel 1,600 mm
B-axis 360 A, division 0.001 A
CNC control SIEMENS Sinumerik 840 CE
Spindle diameter 200 mm
Spindle speed 0–930 U/min
Spindle power 77 kW
Tool taper DIN 2080 AD, ISO 60
Boring table / rotary-tilting table manufacturer SCHARMANN
Table surface 6,000 x 4,000 mm
V-axis travel 2,000 mm
Maximum table load 80 t
3D probe
Chip conveyor
