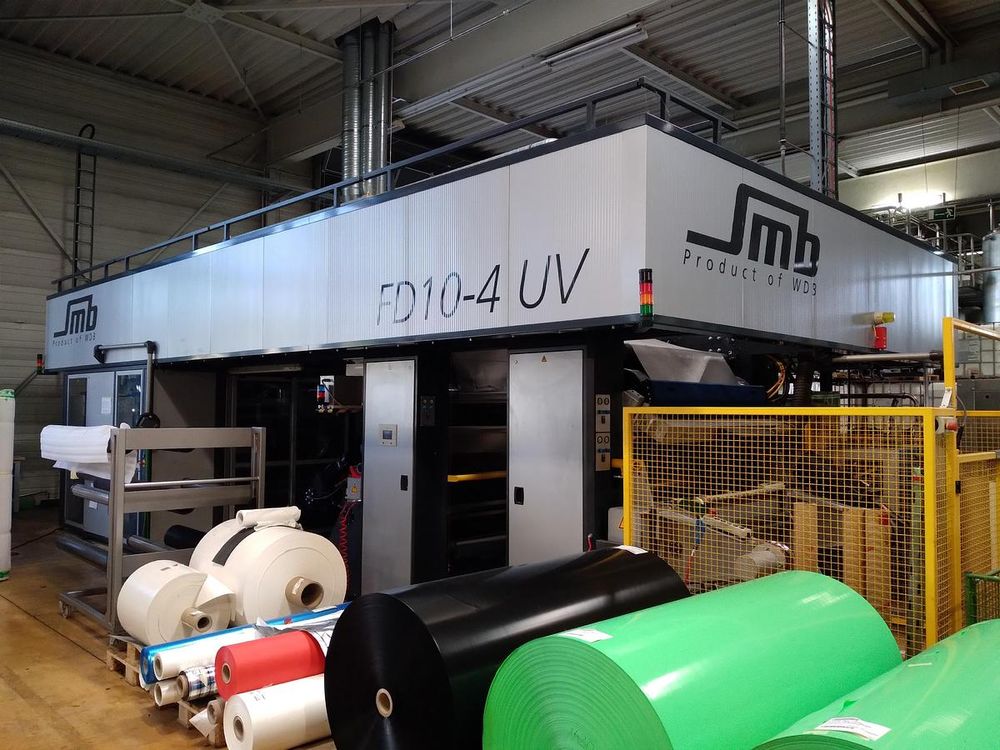

SMB FD10-4/UV 4 1350 mm

WDB Systemtechnik (Smb) 4 colours flexo printing machine for UV inks
Condition Used (visible in production)
Max. print width 1350 mm
Max. material width 1380 mm
Repeat length 400 – 800 mm
Repeat adjustment 0.1 mm
Register adjustment 0.01 mm
Max. roll diameter 800 mm
Inner core diameter 3" / 6"
Max. roll weight 1500 Kg
Web tension 20 – 350 N
Max. speed 350 m/min
Max. speed (UV inks) 150 m/min (Depends on material, printing form, and ink system)
Materials to be printed PET, OPP, aluminum, and laminates (13–250 µm)
Ink system UV inks and coatings
Edge Control BST web guiding system
Drying – Hot Air Tunnel high-performance dryer with gas heating
Drying – IR Heaters 4 × IR heaters, 8 kW each, installed in the drying tunnel
Electrical Supply: Voltage (+/- 10%) 3PE/N 230/400 V
Rated current 230 A
Frequency 50 Hz
Fuse protection 250 A
Short-circuit current (Icq ≤) 10 kA
Pneumatic Supply Operating pressure 6 – 8 | bar Temperature 20 °C | Air quality (ISO 8573-1) Class 5 (dry)
Machine dimensions (approx.) Lenght 11000 x Width 5800 x Height 3700 mm
Machine weight (approx.) 38000 Kg
