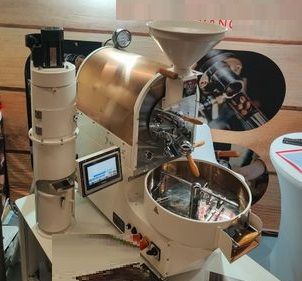

Smokeless 2 kg Coffee Roaster

Drum Capacity
2 kg – max. 2.2 kg

Tabletop roaster with smoke exhauster,
outlet temperature 60 degrees
Can be vented directly to the street without smoke
Roaster has been used for 3 demonstrations
Roasting Time and Capacity: kg/h
12 - 15 minutes, 11 - 8 kg/h
Roasting Heating System
Thermal Transfer - Polidoro Burner / Gas or Electric Heating.
Motor Power and Specifications
4 high-efficiency, quiet IE3 class motors. Compatible with 380/415 / 240V 50/60Hz – (It can operate on single-phase 220V, thanks to our special electrical equipment).
Heating Power
15kW
Fan
2 independent fans (exhaust fan - cooling fan).
Control
7-inch information touchscreen. 2-piece digital temperature control system –
Exhaust fan speed control (airflow) – Drum speed control.
Electronic potentiometer for automatic and manual gas control.

Standard Features
Single-phase or three-phase compatible electrical voltage: 220V
Double-walled drum (13mm wall thickness)

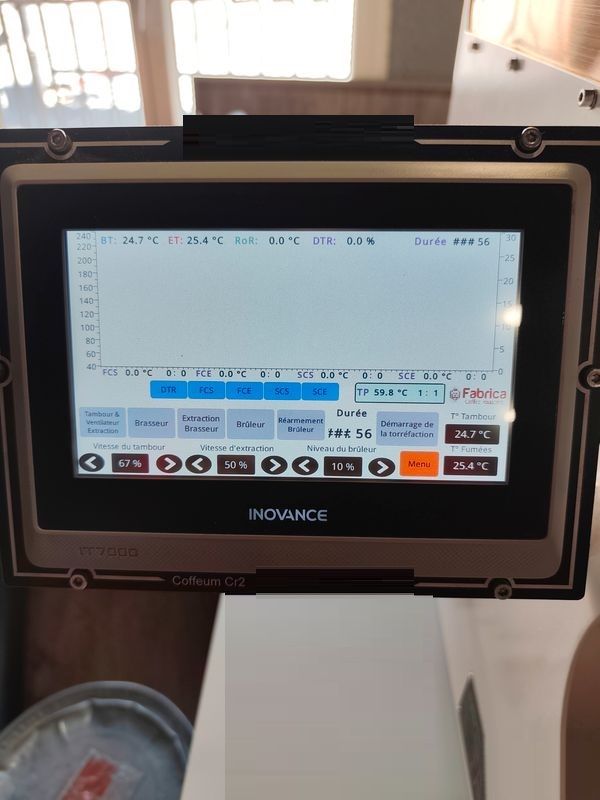

7-inch information touchscreen (displays ROR, DTR, balance point, first and second crack, temperature, timer, and roasting graph)

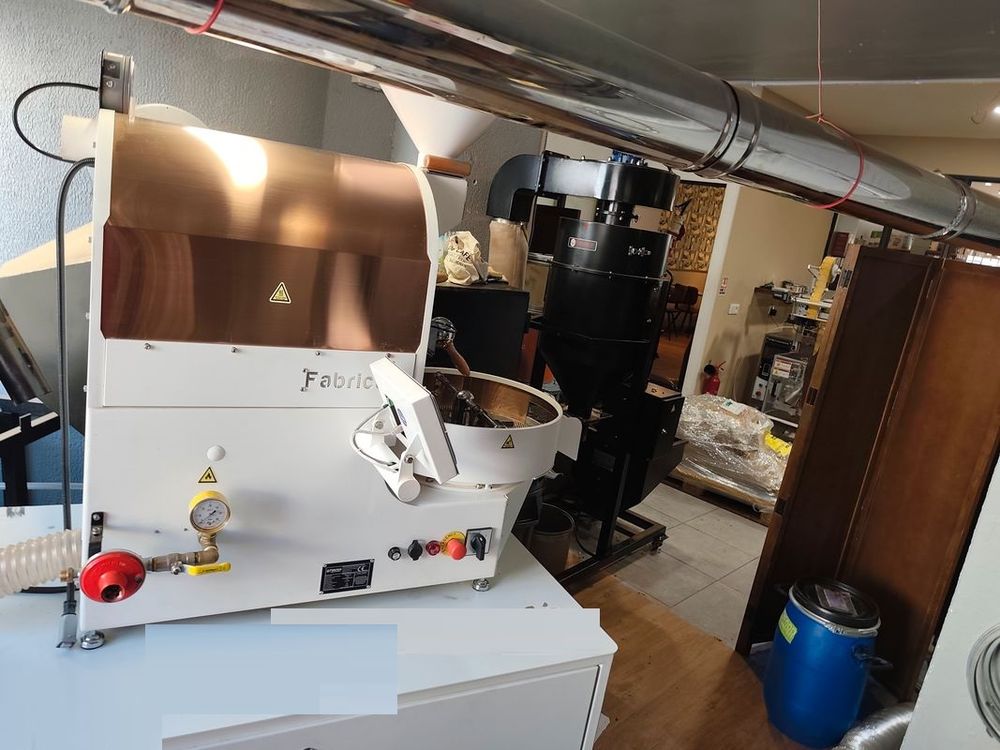

Large-capacity cyclone for collecting coffee parchments
2 thermocouples (coffee bean and exhaust temperature)
Simultaneous roasting and cooling, non-stop roasting
Maximum efficiency (cyclone coffee parchment hopper empties during roasting)
2 fans (exhaust and cooling fan)
2 speed controls: Drum speed and exhaust (airflow) control
Manual and automatic electronic gas control potentiometer

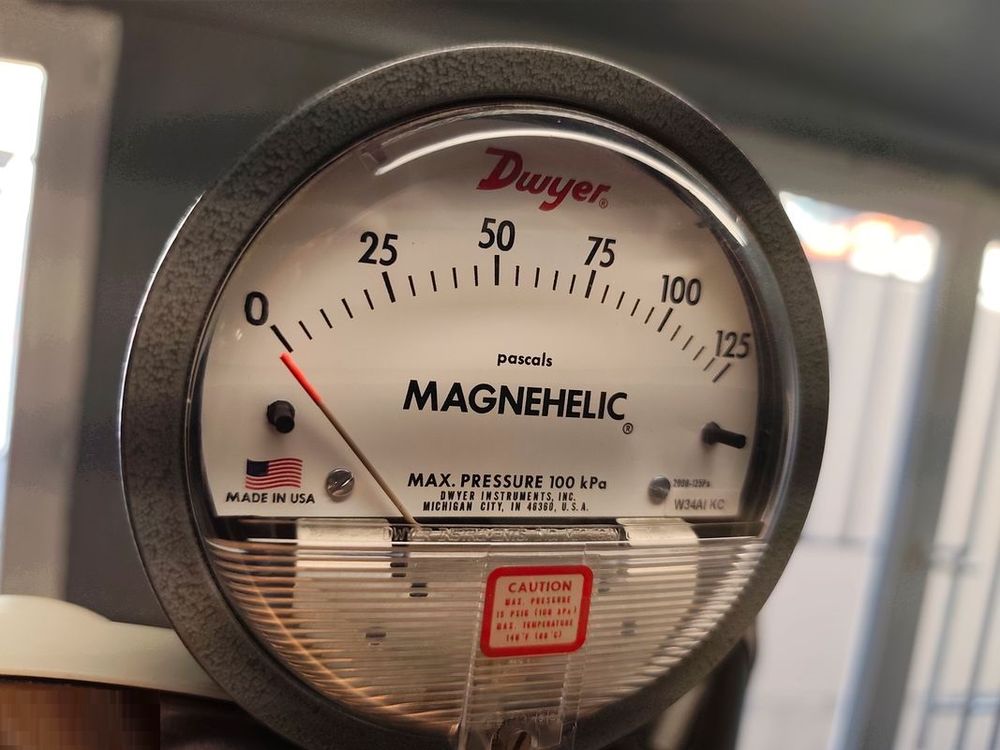

Gas regulator and gas pressure gauge
4 high-efficiency and quiet IE3-class motors
Gas heating type: Propane or Butane LPG Extraction handle, sampling spoon, gas regulator sight glass. Excellent thermal insulation.

Safety standards, CE certificates
Compliant with European regulations for gas appliances - Compliant with European regulations for machine safety
Electrical and control panel
Siemens and Schneider electrical installation
Exhaust outlet
Installation
130 mm
W: 100 cm - L: 150 cm - H: 190 cm
