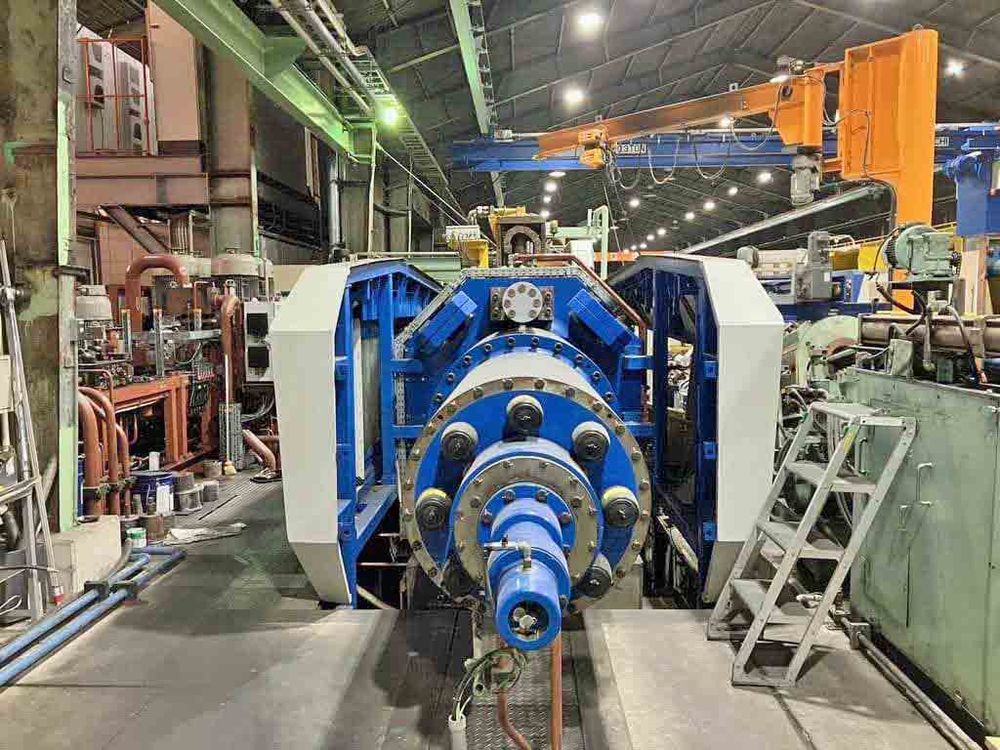

SMS ALUMINUM EXTRUSION PRESS 1450 t

Press force: 1450 t
Pressure: 310 bar
Extruding center: 1000 mm
Extruding height: 3400 mm
Billet diameter: 160 mm
Stroke: 960 mm
Maximum press speed: 23 mm/sec
Press speed: 17 mm/sec
Control: Siemens S7
Production products: automobile sensor cover
Production products: building material
Billet container pressing force: 140 t
Billet container pullback force: 100 t
Billet container intake stroke: 1155 mm
Billet container hole range: 160 mm
Billet container length: 830 mm
Billet length: 250 - 800 mm
Billet split length: 200 mm
Pressure plate opening: 190 mm diameter x 230 mm wide
Tool package size: 330 / 277.55 mm diameter x 380 mm high
Four high pressure oil pumps
Double internal gear pumps
Maximum hydraulic pressure: 310 bar
Maximum transport amount: 172 l/min
Hydraulic drive power: 75 kW
Hydraulic drive speed: 400 - 2200 rpm
High pressure control pump
Maximum high pressure: 320 bar
Maximum transport amount: 9.2 l/min
High pressure pump drive power: 5.5 kW
High pressure pump drive speed: 400 - 1500 rpm
Low double pressure pump
Maximum low pressure: 200 bar
Maximum transport amount: 90 l/min
Low pressure pump drive power: 37 kW
Low pressure pump drive speed: 400 - 1500 rpm
HybrEx hybrid electric / hydraulic drive
Servo electric drive
Billet container drive: 15.7 kW x 2
Operation cross head drive: 31.7 kW x 2
Billet loader drive: 14 kW
Operating voltage: 440 V
3 phase
Frequency: 60 Hz
Motor switching device connected load: 600 kVA
Container heater switching device connected load: 35 kVA
Billet container electric power: 15 kW x 2
Specific press pressure: 721 N/mm2
Billet container weight: 2800 kg
Press punch for container hole / press disc: 160 mm
Compressed air pressure: 6 bar
