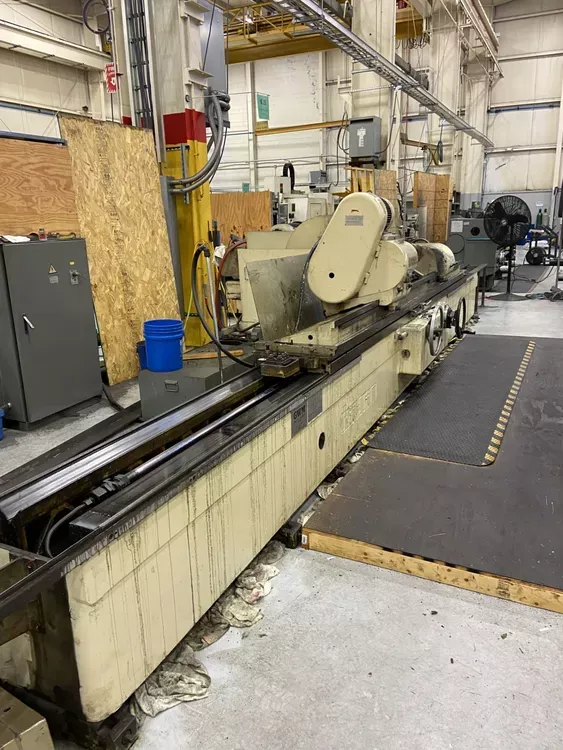

SMTW 20 Cylindrical Grinder

Swing 21"
Centers 120"
Plain or Angle Head Plain
Grinding Wheel Diameter 30"
Wheel Power 20 HP
Gauging Yes
Dead Spindle Workhead
(3) Work Rests
Way Covers
Splash Guards
Hydraulic Unit
Coolant System (Tank & Pump)
Swing Over Table, Maximum 21"
Grinding Diameter w/30” Wheel 20"
Distance Between Centers, Maximum 120"
Workpiece Weight Capacity, Between Centers 2206 LBS
Grinding Wheel Width, Maximum 3"
Grinding Wheel Hole Diameter 12"
Grinding Wheel Surface Speed, Maximum 6889 SFPM
Grinding Wheel Rapid Approach 3.937"
Workhead Speed, Variable 18 to 140 RPM
Workhead Spindle Taper #6 MT
Tailstock Spindle Taper #6 MT
Tailstock Quill Travel 2.75"
Grinding Wheel Motor Horsepower 20 HP
Workhead Motor Horsepower 2.9/4.8 HP
