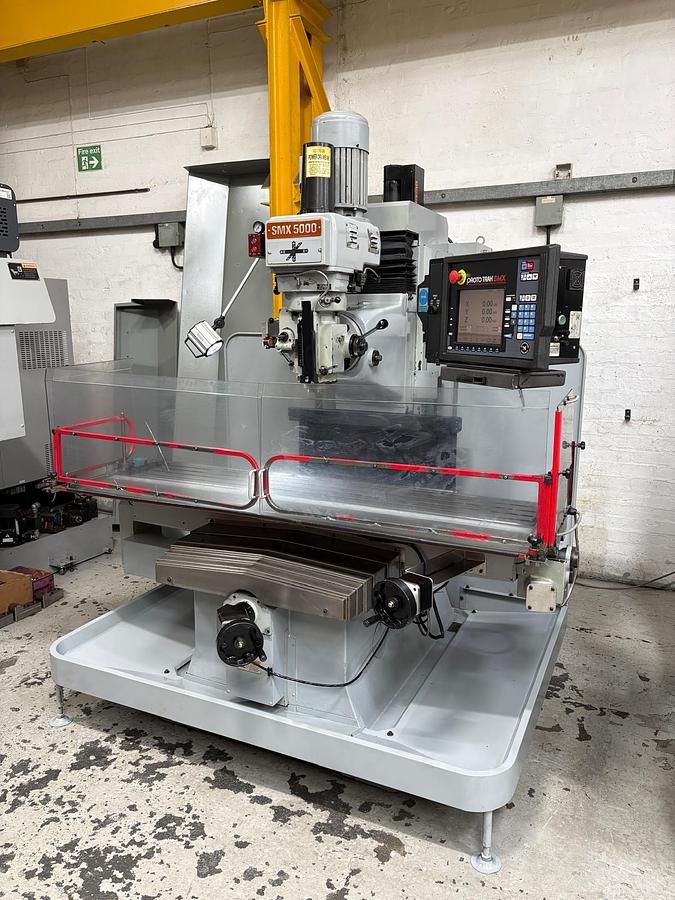

SMX 5000 VERTICAL BED TYPE CNC MILLING MACHINE

X Axis Travel: 60 in (1524 mm)
Y Axis Travel: 23.5 in (596 mm)
Z Axis Travel: 21 in (540 mm)
ProtoTRAK SMX Control
DRO to Quill
Air Draw Bar
Automatic Lubrication
Coolant System
Halogen Work Light
Table Guards
Spindle Speed: 40 – 5,000 RPM
Spindle Taper: ISO 40
Spindle Motor: 7.5 HP (5.75 kW)
Head Swivel: ±90°
Quill Travel: 5.5 in (140 mm)
Spindle Feed per Revolution: 0.0016 / 0.00309 / 0.00513 in
Table Size: 76 × 14 in (1930 × 355 mm)
Max Table Load: 1,870 lb (850 kg)
Distance Table to Spindle: 3.75 – 26.5 in (95 – 675 mm)
Spindle Centre to Column Face: 24 in (610 mm)
Machine Dimensions: 2768 × 2286 × 2540 mm
Machine Weight: 3,200 kg
