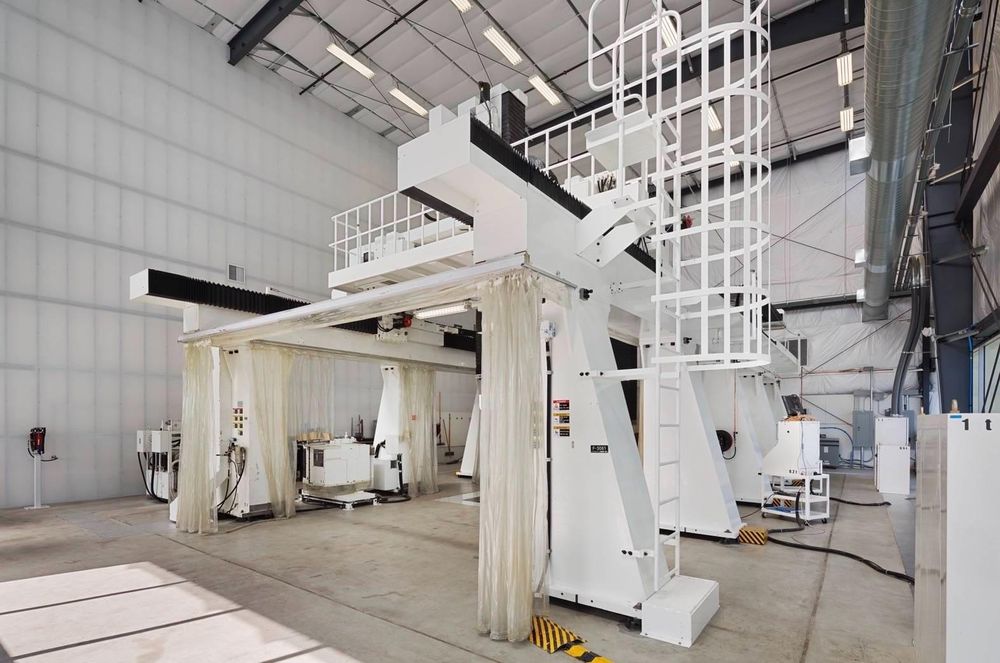

SNK MKS3500 5 Axis

X Axis Travel: 374" (Gantry Travel with 1 Parked)
Y Axis Travel: SNK 137.79" (Head Horizontal Travel)
Z Axis Travel: 106.29" (Ram Stroke)
B Axis Rotation: ±120°
C Axis Rotation: ±220°

Control: FANUC 15IMB CNC Control
Distance Between Columns: 192.91"
Spindle Speed: 3,000–15,000 RPM
Spindle Taper: #40 ISO
Spindle Motor: 20 HP
Machine Footprint (L x W): 670" x 374"
Overall Height: 338"

Twin Gantries & Rams with Nutating Heads
Scales on All Axes
(2) 20-Station Automatic Tool Changer
236" x 98.42" Surface Plate
Special Control Functions for High-Speed, High-Precision Machining
Machine Operation Smoothing Function
Lost Motion Compensation Function
Look-Ahead Ultra-High Speed High-Precision Control
Nano Interpolation Control
Look-Ahead Acceleration Control
Zero Tolerance Control
Machining Mode Selection Function
High-Speed (High-Precision) Finishing Mode
High-Quality (High-Precision) Finishing Mode
Semi-Finishing Mode
Rough Cutting Mode
User-Defined Mode
Z-Axis Descent Deceleration Function
Automatic Corner Speed Control
Small R Deceleration Control
Automatic Corner Detection and Exact Stop Function
High-Speed Pick Feed
Deceleration Control by Difference in Speed Between Each Axis
