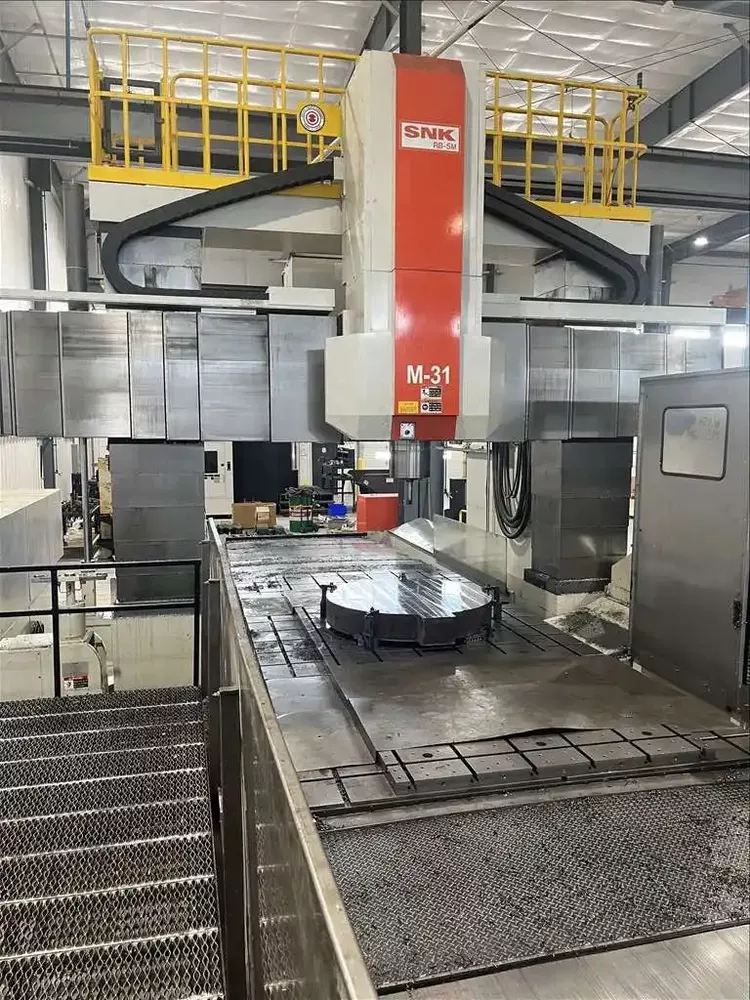

SNK RB-5M 5-Face Double Column CNC Bridge Mill 5 Axis

X-Axis Travel 206.6"
Y-Axis Travel 133.8"
Z-Axis Quill Stroke 31.5"
W-Axis Cross Rail Vertical Travel 55.1"
Right Angle Head Attachment Indexing 1°
Distance Between Columns 122"
Table Size 196.8" x 98.4"
Table Weight Capacity 33,000 lbs
Tooling 60-ATC
Spindle Speed 40 - 4500 RPM
Spindle Taper #50
Spindle Motor 60.3 HP / 49.6 HP
Rotary Table Tsudakoma RA-500R
Rotary Table Diameter 19.7"
Rotary Table Center Height 12.2"
Rotary Table Bore Diameter 7.2"
Rotary Table Max Speed 11 RPM
Rotary Table Max Horizontal Load 1,323 lb.
Rotary Table Max Vertical Load with Tailstock 551 lb.
CNC Control Fanuc 31i-B 4-Axis
Auto Indexing Right Angle Head 30 HP
Right Angle Attachment Changer
Thru-Spindle Coolant Vertical & Right Angle Head
