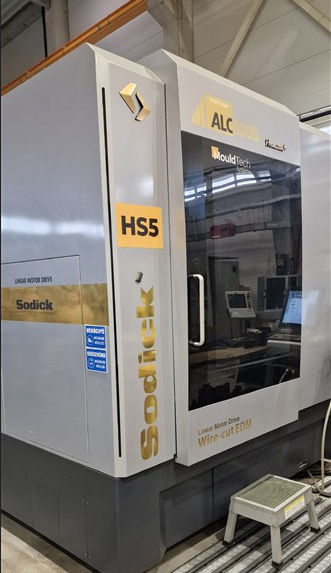

Sodick ALC800G

X-axis travel: 800 mm
Y-axis travel: 600 mm
Z-axis travel: 500 mm
U-axis travel: included
V-axis travel: included

Max workpiece size (X): 1050 mm
Max workpiece size (Y): 800 mm
Max workpiece size (Z): 295 mm
Max workpiece weight: 1500 kg
Table size (X): 1150 mm
Table size (Y): 850 mm

Automatic wire feeding (AWF): included
8-axis simultaneous control: included
Rotary table WS5P (indexing/simultaneous): included
Taper Flex 45 NEO (up to 45° taper cutting): included
Linear motors (X, Y, U, V): included
Absolute linear scales (X, Y, U, V): included
SPW-E generator: included
Sodick motion controller: included
3-sided rising/descending tank: included
4-stage filtration system: included
Automatic wire threading (Fixed Jet AWT): included
Automatic water level control: included
Wire end remover: included
Dielectric cooling unit: included
Energy saving system: included
Fine corner control: included
Digital PIKA W Plus surface finish system: included
DSF (Dynamic Shape First): included
Integrated 20 kg wire feeder: included
L-Cut wire chopper: included
19" TFT color display: included
LAN interface: included
USB interface: included
Remote controller: included
Work light: included
