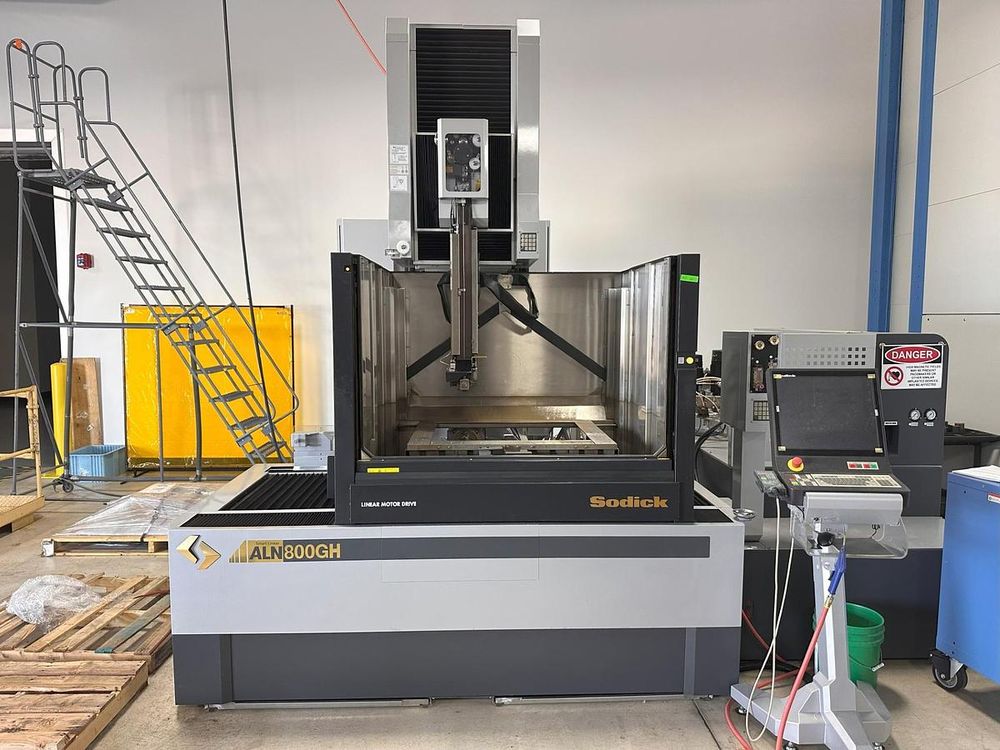

Sodick SPWA ALN800GH/LN2W

X-axis travel: 31.50"
Y-axis travel: 23.62"
Z-axis travel: 28.74"
U-V axis travel: 7.87" x 7.87"
Control: LN2W CNC
Wire diameter range: 0.004" ~ 0.012"
Work tank ID: 59.05" x 40.94"
Floor to table distance: 39.17"
Machine dimensions: 130.31" x 132.28" x 106.10"
Machine weight: 12,125 lbs
Cutting hours: Less than 950
Axis drive: Rigid linear motor (X, Y, U, V)
Wire chopper: Included
Chiller unit: Included
Absolute linear scales (X, Y, U, V): Included
Smart Plus Wire Control: Included
Tablet-style control: Included
LCD panel: 19" touchscreen
Smart Pulse Generator: Included
Digital Pika-W Plus circuit: Included
Advanced Step Machining: Included
High Precision FT-II Sensor: Included
Ceramic work zone: Included
Fixed Jet (FJ) High Speed AWT: Included
Rigid cast construction: Included
TMP II surface finishing circuit: Included
K-SMC motion controller: Included
3-part filtration system: Included
Slide plate lubrication: Included
Advanced corner control: Included
Energy saving unit: Included
Dielectric cooling unit: Included
Ion-exchange unit: Included
Operating system: Windows
Auto wire tension servo: Included
Auto voltage regulator: Included
4-sided clamping table: Included
Z-axis fluid level control: Automatic
