Soenen 400 Ton + 160 ton 400 Ton
EUROPE (Western and Northern)
Soenen 400 Ton + 160 ton
Capacity 400 Ton
Max adjustable stroke 850 mm
Drawning speed 300 mm/sec
Workingspeed 20 mm/sec
Returningspeed 300 mm/sec
Distance between table -- ram 1400 mm
Dimension of the table 2200 x 1100 mm
Electric motor power 125 CV
Length 3200 mm
Depth 1900 mm
Height 5800 + 1800 mm
Weight 42 000 kg

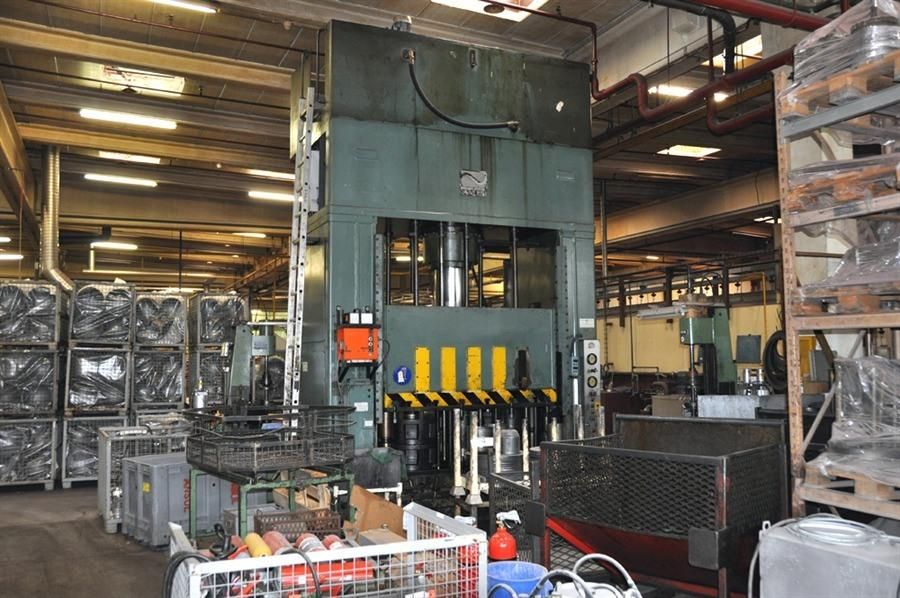

Soenen Deepdraw Press 400 Ton
Capacity: 400 Ton
Max ram adjustment: 850 mm
Drawningspeed: 300 mm/sec
Workingspeed: 20 mm/sec
Returningspeed: 300 mm/sec
Max distance between table -- Ram: 1400 mm
Dimensions of the table: 2200 x 1100 mm
max counter-pressure in table: 160 Ton
adjustable stroke/counterpressure: 350 mm
Motor Power: 125 CV
Lenght L -- R: 3200 mm
Depth F -- B: 1900 mm
Height: 5800 + 1800 mm
Weight: 42 000 kg
