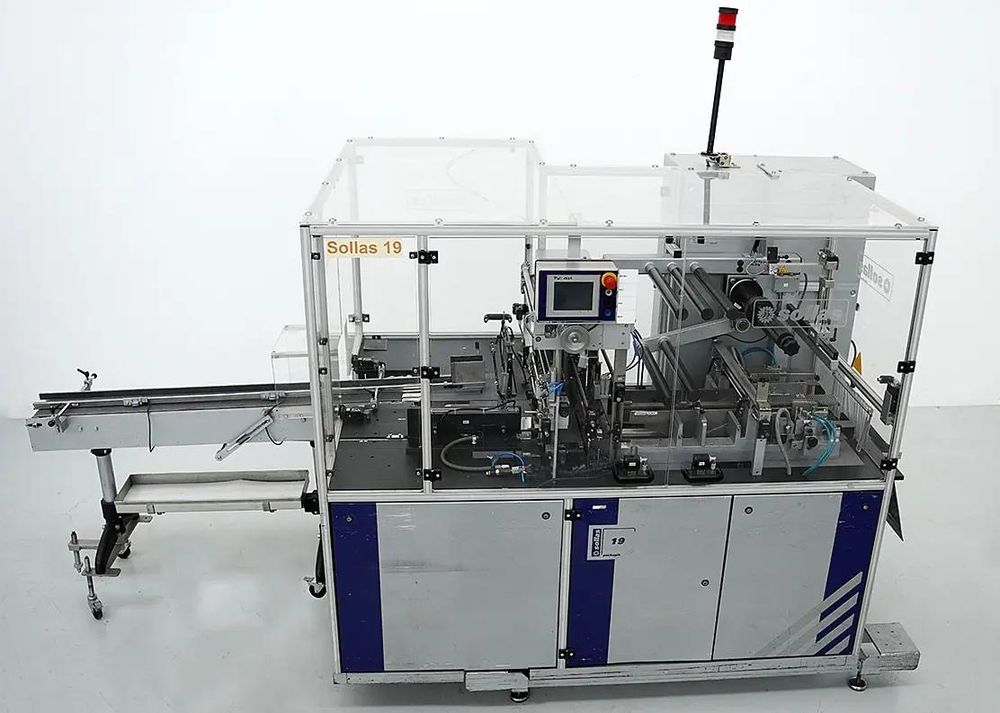

Sollas 19 Overwrapping Machine

Mobile automatic overwrapping machine, designed for precise single wrapping of folding cartons in the cosmetics sector.

MACHINE CHARACTERISTICS
with linear infeed conveyor (length ca. 1500 mm)
with 2 format sets
with spare parts
PLC: SIEMENS, type Simatic S7-300

PRODUCTION CHARACTERISTICS
Machine speed: 50 cycles per minute max. (depending on the setup and the product being packaged, the feed system, and the film type)
Processable materials: PP, PE, and coated paper

Package dimensions
Length (L): min. 45 mm; max. 300 mm
Width (W): min. 40 mm; max. 200 mm
Height (H): min. 16 mm; max. 140 mm

Film roll dimensions
Outer diameter: 320 mm
Maximum roll width: min. 50 mm; max. 425 mm
Inner diameter: 45-80 mm
Film cut length: min. 110 mm; max. 590 mm

ENERGY CONSUMPTION
Power supply: 230/400V - 3 phases + neutral 50/60Hz
Control current: 24V DC
Heating: 230V - 50/60Hz

SIZE
Dimensions: 3700 x 1800 x 2000 mm (ca)
Weight: 1200 kg (ca)
