Sollich 820 / 1050 conbar cereal line

year of construction 2017/18
output per hour: 1 ton with large formats, 550 kg/h with small formats
product: Peanut bar, puffed rice bar or cereal bar
product dimensions: 109 / 100 mm length, 34 mm width, 6-10 mm height
weight: 17-20 grams
List of machines:

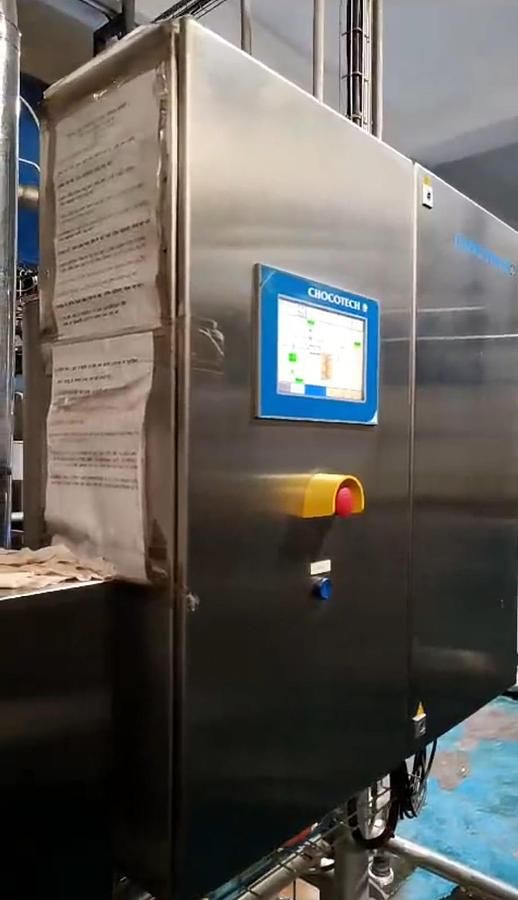

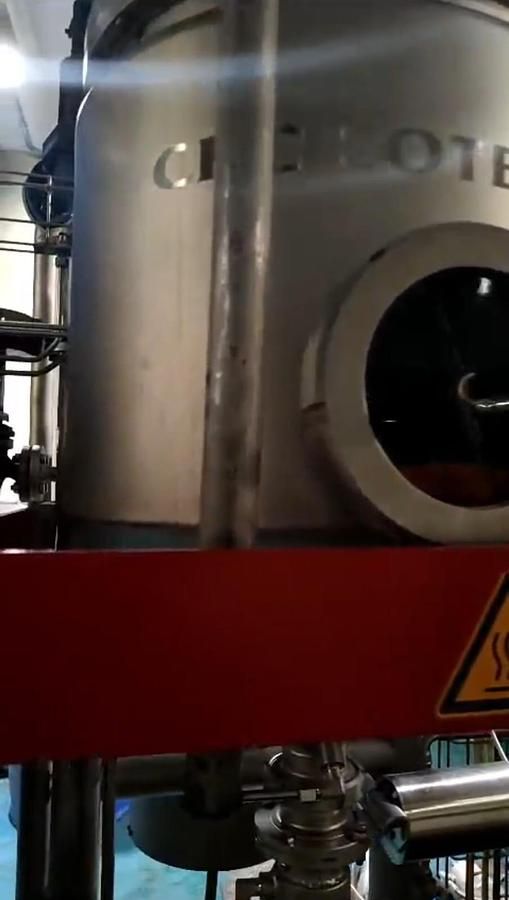

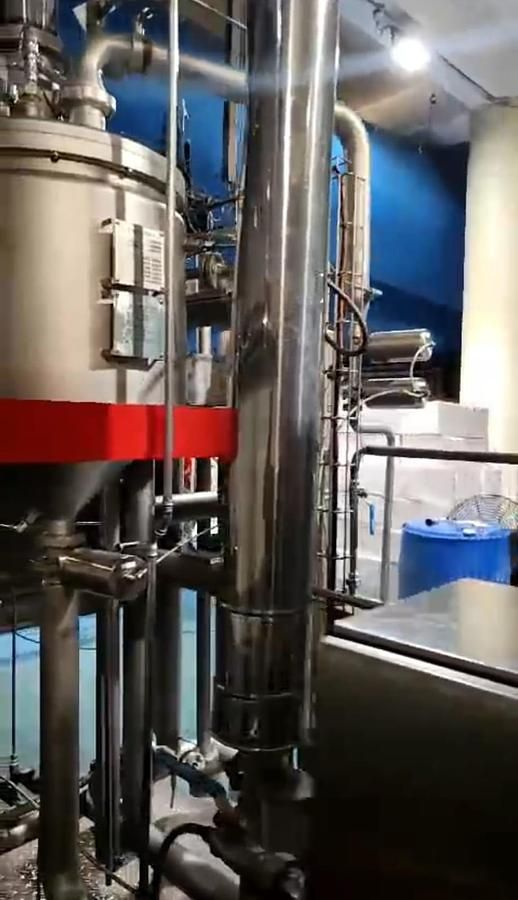

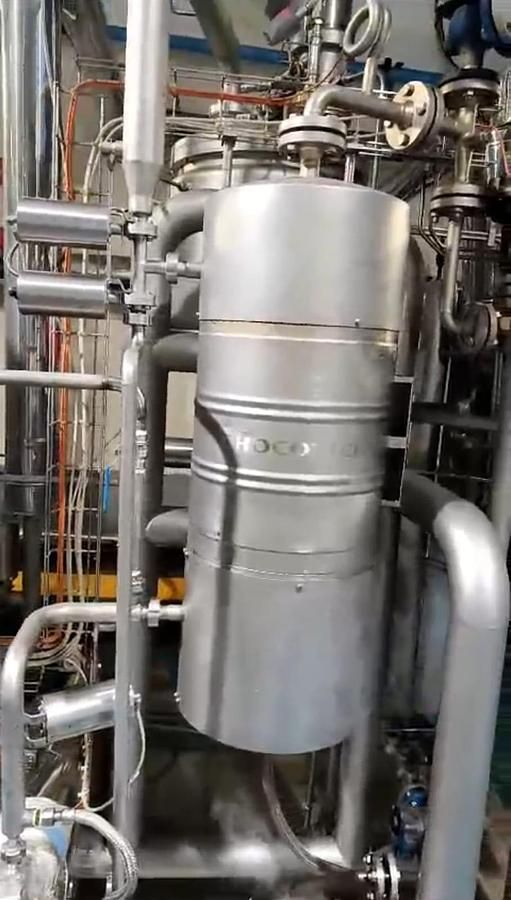

1) Syrup cooker Chocotech
2) Peanut Sieve Galaxy Sivtek
3) Elevator Fabcon
4) Screw conveyor, screw heating Sollich, with 1 continuous peanut
Heating system, including mixing, with thermal oil heating of the continuous mixer,
with weighing and peanut heater
5) Cardamom feed/feed Sollich, dosing type K-MV-KS 60
6) Peanut feed / Sollich feed
7) Continuous mixer Sollich type SMB 315
8) Task Sollich, with volumetric quantity measurement type TD 2, to mix in the sugar binder.
9) Carpet former, upper and lower roller with temperature control Sollich type WEB 800, carpet width 758 mm,
frequency controlled, with heated feed, 3.5 m infeed table 820 mm wide, with stainless steel cooling plates, incl.

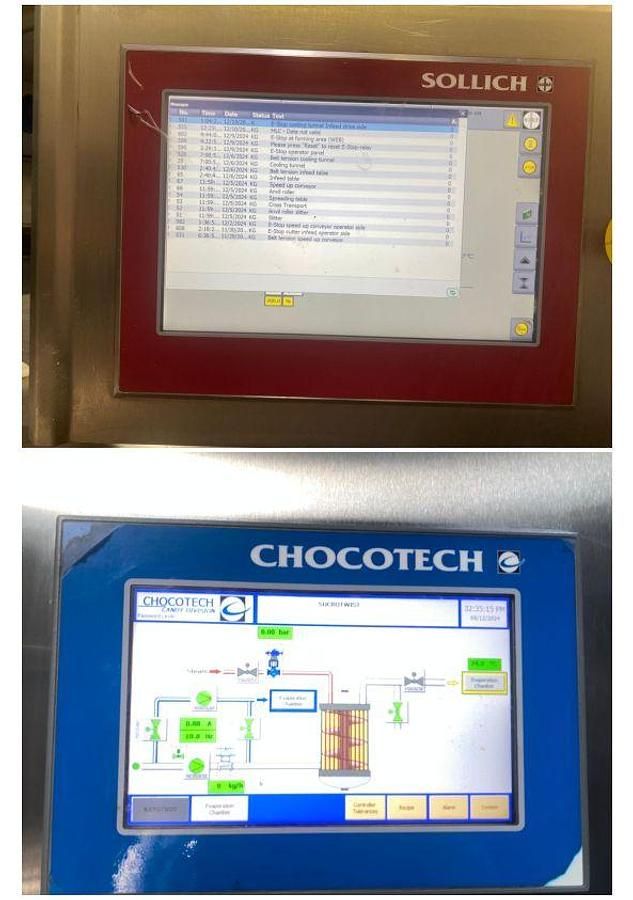

photopneumatic belt control, with 1 separate control cabinet at the inlet with Sollich operation via PLC to
Carpet thickness can be regulated on the WEB 800, the cooling channel temperature and the belt speed can
be regulated, including 1 WKH water circulation system for the two rollers of the WEB 800 and the feed hopper

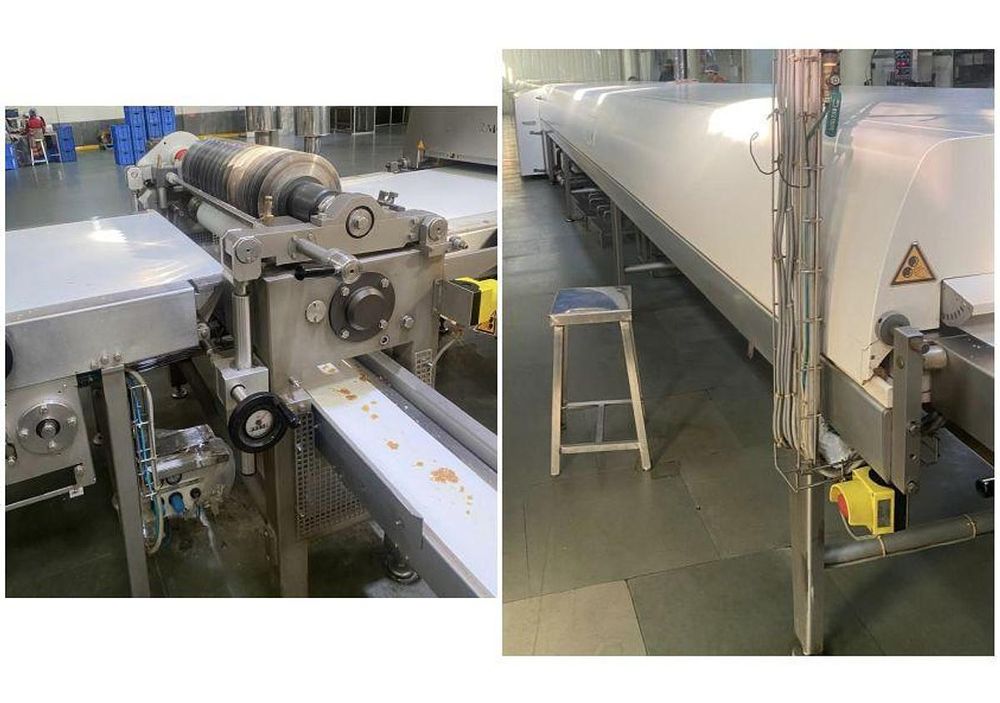

10) Calibration roller with temperature control Sollich type SAW 800, incl. 1 cooling and heating unit
11) Cooling tunnel 1, with chiller system Sollich type KK 820, 12 m contact convection channel, including belt E8/2, with
Air cooling module L 20 GL (water supply via WKH) including photo-pneumatic belt control, 1 longitudinal cutter type
ABN 820 with 336 mm diameter, frequency controlled, pneumatic belt control, 1 m outfeed table 820 mm incl.
Belt scraper knife, including 1 heating and cooling unit for the bottom of the infeed table, cooling table KK 820,
spreading belt, Infeed table with guillotine
12) Spreader Sollich type SL 800, with 23 rotating knives for 22 product rows, including cross conveyor to
to separate sections
13) Spreader belt type SSC 800/1050, with 22 spreader belts and 2 m acceleration belt.

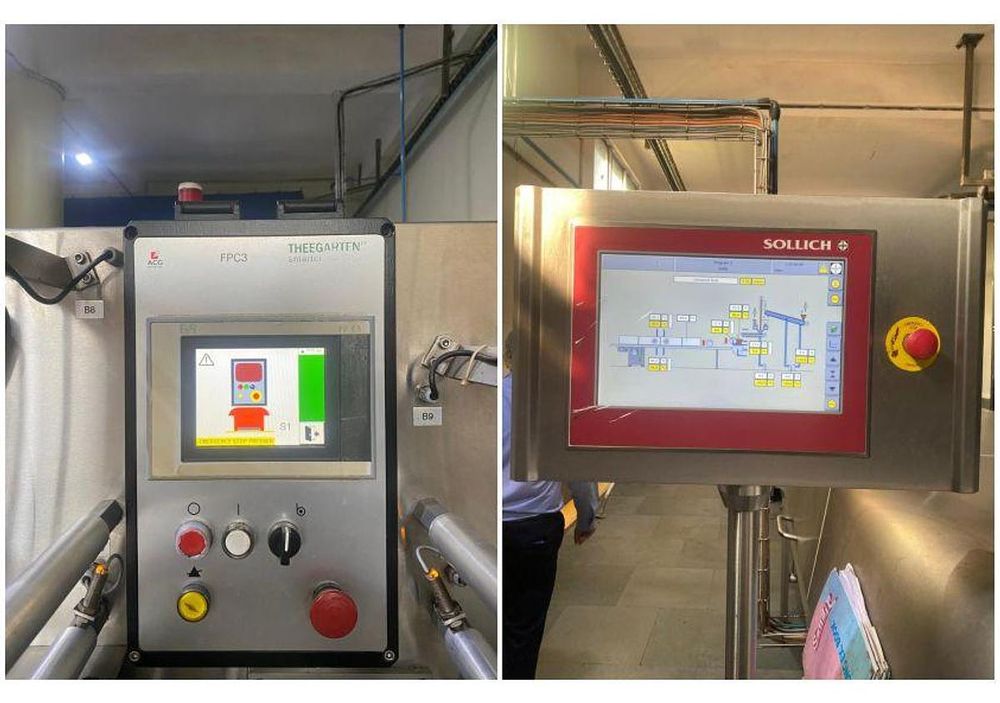

14) Cutting machine Sollich type SGU 800 S, frequency-controlled drive of the knife, photo-pneumatic belt control,
Servo drive with separate control cabinet Sollich PLC for controlling the speed of the plastic belt and the
Slitting device, spreading device, infeed belt of the cutter, the UPM of the plastic roller and the
Product section length

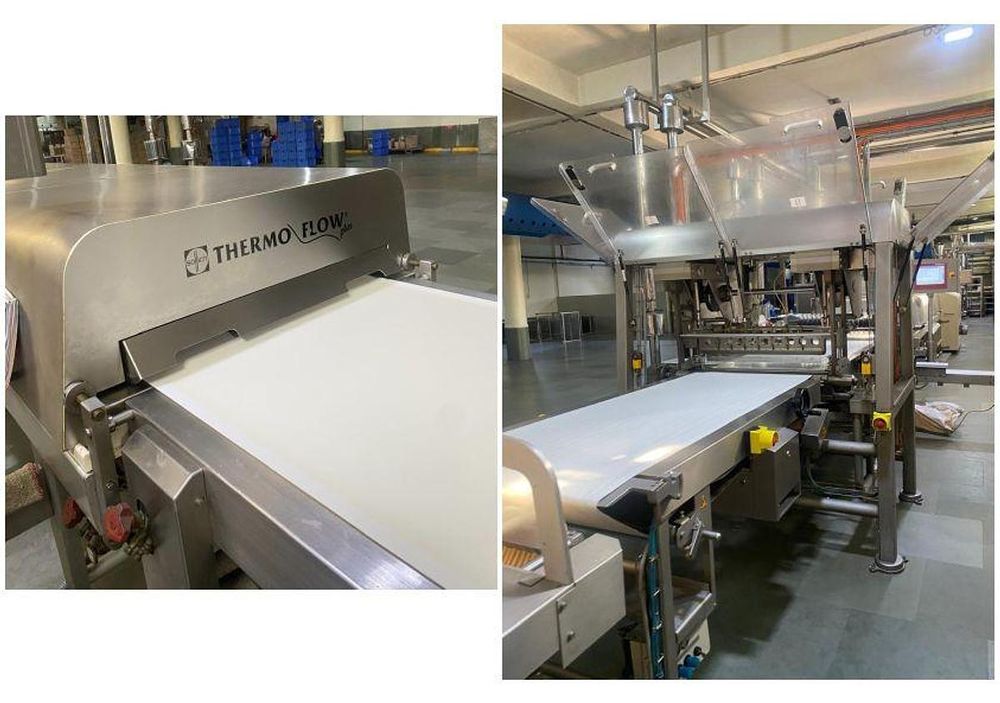

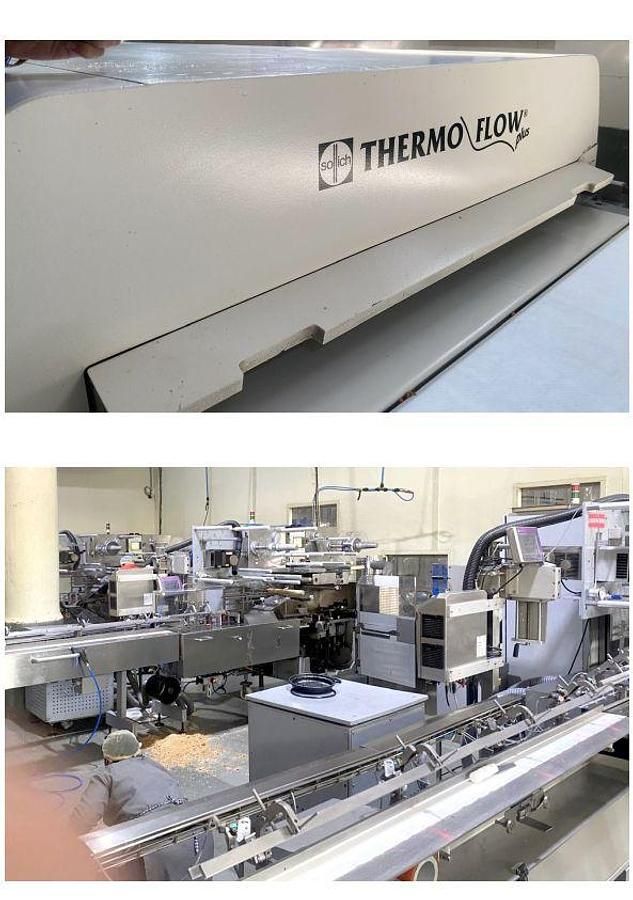

15) Cooling tunnel 2 Sollich Thermo-Flow Plus type LSK 1050, with 1 m infeed table 1050, 321.12 m cooling tunnel LSK
1050, including belt E8/2, with air cooling unit module L 50 GL, including photopneumatic belt control, including 1 belt
drive type ABN 1050
16) 90° curved belt Transver AG
17) ADS Station 1, 2 & 3 Theegarten Pactec
18) Metal detector 1, 2 & 3 Loma systems
19) Flowpack Machine 1, 2 & 3 ACG
20) Laser Printers 1, 2 & 3 Markem-Imaje
21) Empty packaging control Beacon engineers
22) Manual container filling station
23) Belt for filled containers Beacon engineers
24) Container Printer Markem-imaje
25) Container wrapping and shrinking Jet pack machines pvt. Ltd.
26) Manual carton filling station
27) Belt for filled boxes Beacon engineers
28) Checkweigher Ishida India pvt. Ltd.
29) Cardboard Barcode Printer Markem imaje
30) Stelda carton sealer
31) Belt for delivering filled boxes Beacon engineers
undismantled, ex location
