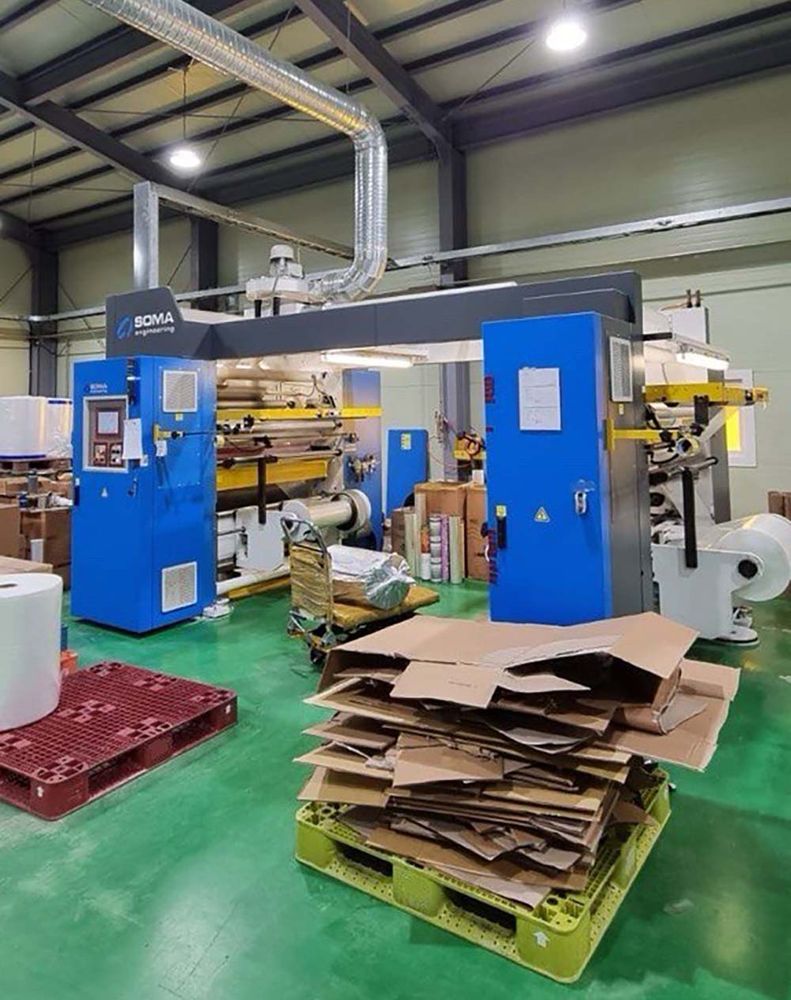

Soma Lamiflex Duplex solventless laminator

Max coating width 1310mm
Min. roll width 300 mm
Inner core diameter 76,2 mm (3''), (152,4 mm (6''))
Max. reel weight 800 kg
Water temperature for roller temperature control max. 90°C

Accessories included:
Primary and secondary unwind unit mechanical clamping cones for 152,4 mm core diameter (4 pcs) - Dural: 1 pair
Adhesive coating unit: set of Teflon dams (2 pcs): 3 sets
Rewind unit pneumatic shaft for 76 mm diameter cores with carriers (assembly instead of mechanical cones or pneumatic chucks), 1 pc
Temperature control system loop for application roller R4 temperature control 1 pc
Adhesive evaporation ducting: filter material for ca 60 pcs of collector fillings 1 pc
Cooling cylinder: driven cooling cylinder 1 pc
Adhesive dosing unit: two-components adhesives dosing and mixing unit bi-2 MINI mixer from co. LR incl. automatic refilling for mixer 1 pc
compressor cooling unit for cooling cylinder 1 pc
