Somab CNC CONTROL 5,000 t/min TRANSMAB 200 2 Axis
Ref :
2756866-3-MT
Condition :
Used
Manufacturer :
Somab
Controller :
CNC CONTROL
Spindle Speed :
5,000 t/min
Model :
TRANSMAB 200
Nb Of Axis :
2 Axis
Year(s) :
2001
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)

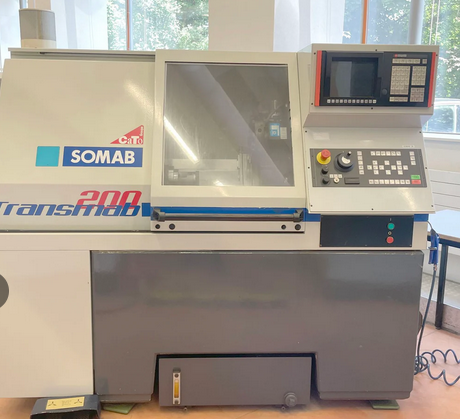

CNC turning lathe with slant bed
Swing over bed: 260 mm
Spindle bore: 35 mm
Z-axis travel: 300 mm
X-axis travel: 125 mm
Turret: DUPLOMATIC
Turret positions: 8
Fixed tools on turret: 8
Tool shank cross section: 16 mm
Spindle nose inner cone diameter: 20 mm
Spindle speed range: 200–5,000 t/min
Spindle motor: 4 kW
Spindle taper: A2-4"
Tailstock Morse taper: 3
Tailstock stroke: 80 mm
Tailstock spindle diameter: 52 mm
Tailstock pressure: 1,200 N
Voltage: 3× 400 V, 50 Hz
Machine weight: 2,500 kg
Machine dimensions: Length 1,900 mm × Width 1,400 mm × Height 1,980 mm
Collet device and set: F38
Lamp
Tailstock
Tool cabinet
RS232 interface
Foot pedal
Set of toolholders
