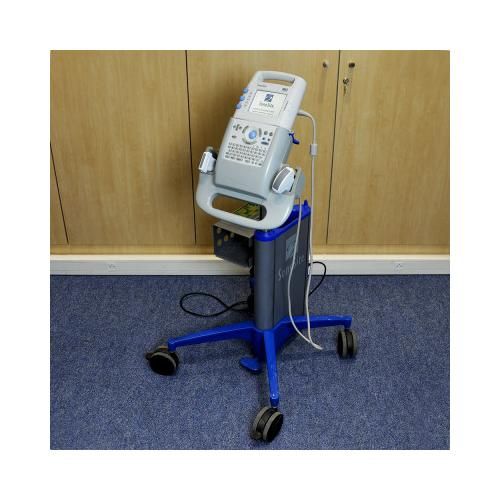

Sonosite 180 plus Portable Digital Ultrasound Scanner

SONOSITE 180 PORTABLE ULTRASOUND SCANNER
WITH CONVEX ABDOMINAL AND SUPERFICIAL LINEAR PROBES

Features
Portable and robust design for mobile clinical use
Intuitive user interface with direct controls and integrated trackball
Narrow Imaging Sector function for targeted examinations
Integrated obstetric, cardiac and vascular calculations
Distance, area, circumference and volume measurements available
Automatic optimisation according to patient type
Internal storage and frame-by-frame image playback (cine mode)
Direct connection to PC for image transfer and archiving
Compatibility with video, printer or external monitor
Battery operation for extended autonomy

Technical Details
Dimensions: 33.8 cm (height) × 19.3 cm (width) × 6.35 cm (depth)
Weight: 2.4 kg with transducer
5" (12.7 cm) colour TFT screen
Imaging modes: 2D, Zoom, Pulsed Doppler, M-mode, Colour Power Doppler, PowerMap Directional Colour Doppler, THI (optional)
Frame rate: up to 100 frames/s
Dynamic range: approximately 140 dB
Internal storage: up to 120 images
Connectivity: NTSC/PAL composite video output, PC Direct port via serial cable, ECG/serial connection
Power supply: rechargeable lithium-ion battery or 100–240 VAC, 50–60 Hz AC adapter
Battery life: 1.5 to 4 hours on a full battery

Compatible Accessories
C60/5-2 transducer: 60 mm (5–2 MHz) for abdominal, obstetric and
gynaecological applications
ICT/7-4 transducer: 11 mm (7–4 MHz) intracavitary for gynaecological and
urological applications
C15/4-2 transducer: 15 mm (4–2 MHz) for transthoracic and abdominal imaging
L38/10-5 transducer: 38 mm (10–5 MHz) linear for breast,
vascular and musculoskeletal imaging
C11/7-4 transducer: 11 mm (7–4 MHz) for paediatric and neonatal applications
Biopsy guide compatible with ICT and L38 probes
PC Direct cable and SiteLink Image Manager software
SiteStand mobile docking station for image transfer and power supply
